Описание

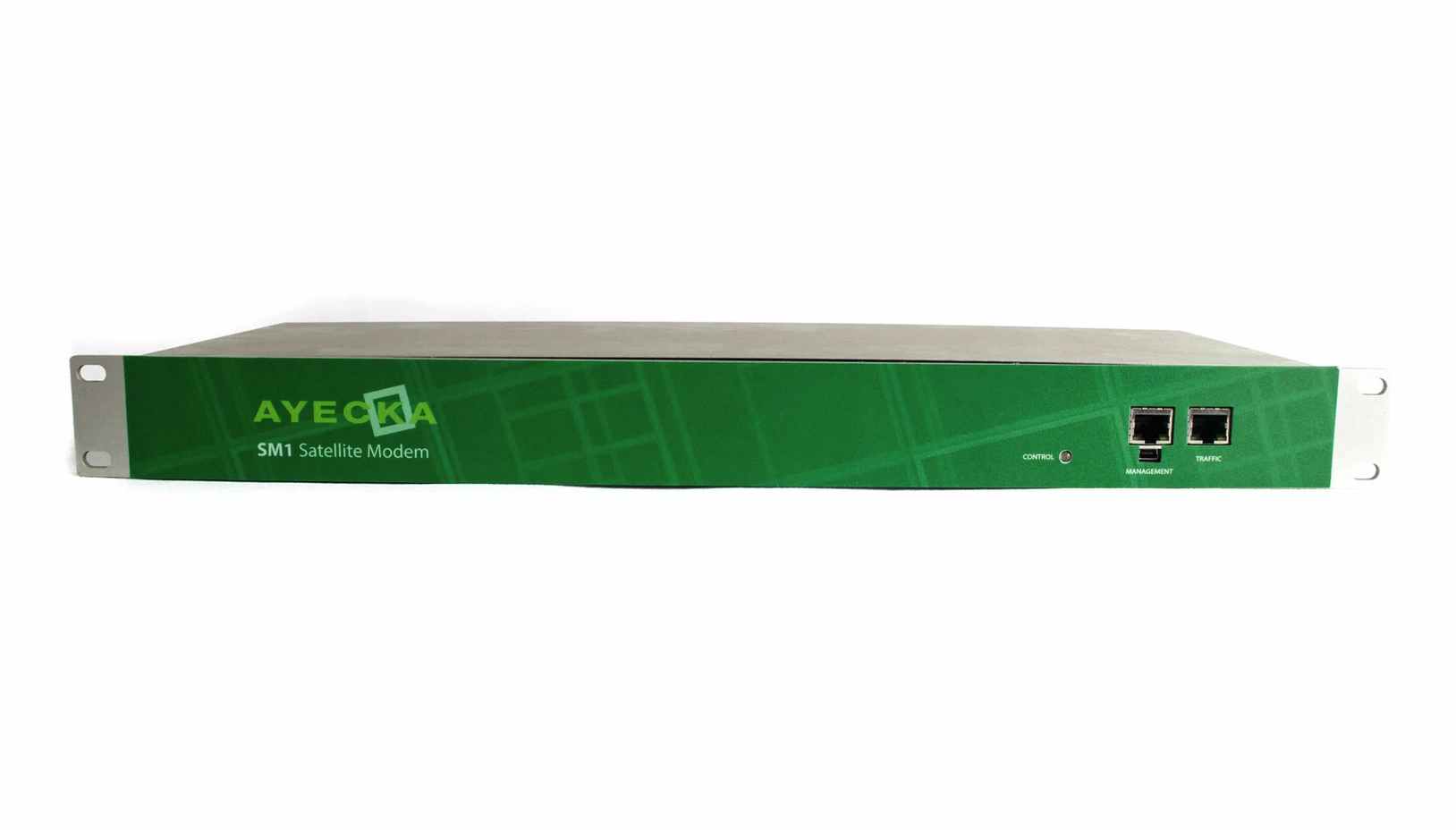

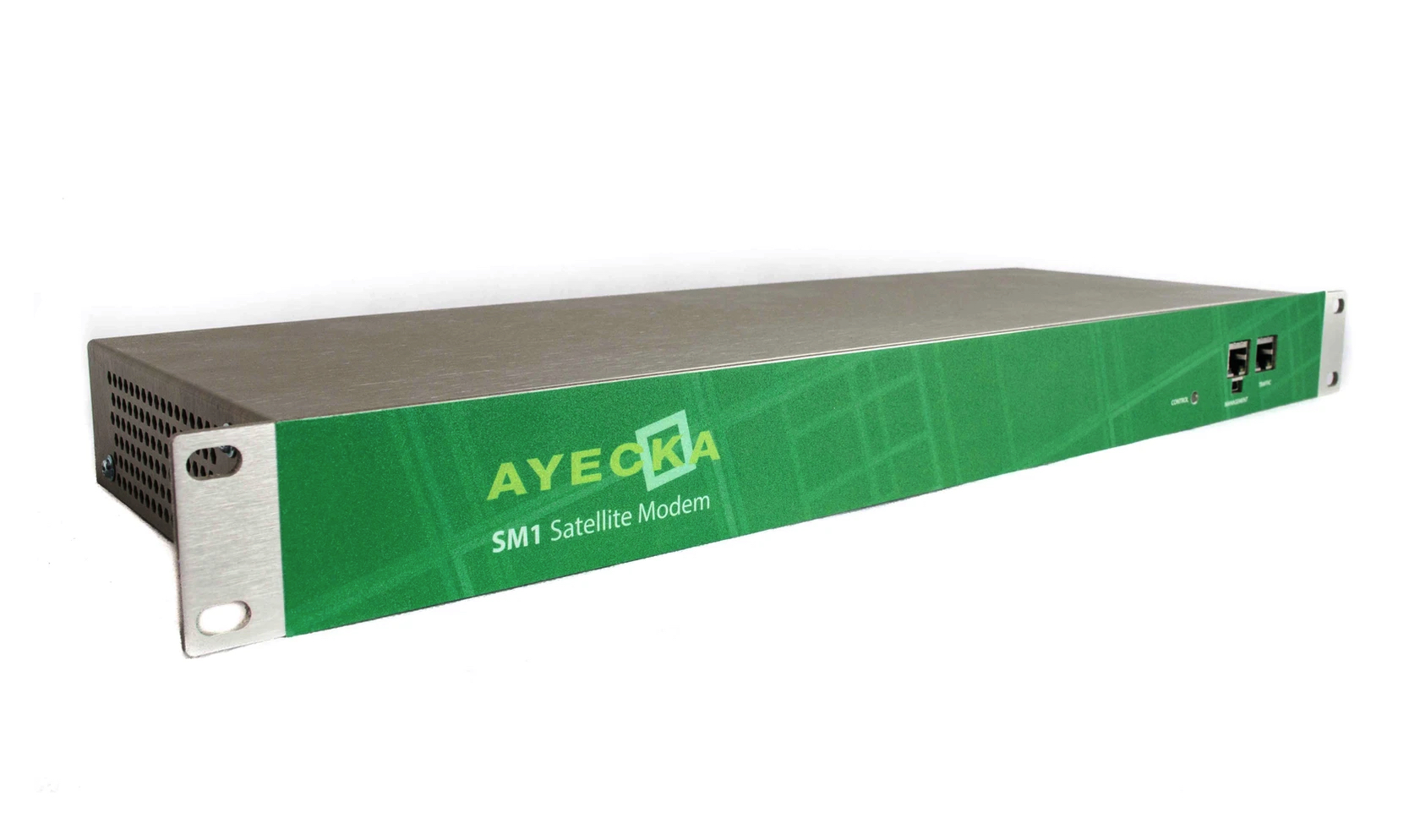

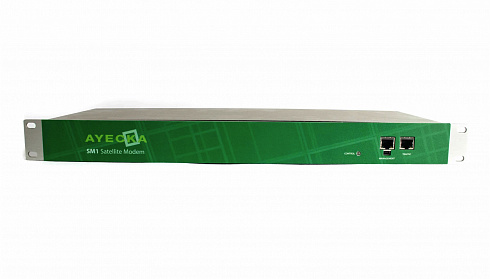

Доступность и превосходная производительность SCPC-модема SM1 advanced DVB-S2 обеспечивают поставщикам услуг сильное конкурентное преимущество. Модем обеспечивает высокую спектральную эффективность стандарта DVB-S2, помогая значительно снизить долгосрочные эксплуатационные расходы. С возможностью выбора SCPC DVB-S2, DVB-RCS или обратного канала произвольного доступа AYECKA SM1 является идеальным выбором для любого типа сети.
Основные характеристики продукта
- Экономичное решение для передачи данных по протоколу IP через DVB-S2
- Полная поддержка DVB-S2
- VCM и ACM
- МОДКОД: от QPSK 1/4 до 32 APSK 9/10
- Выходная скорость от 100 до 67,5 Мбит/с/более 240 Мбит/с
- Поддержка MPE и GSE
- Приемник с двумя несущими
- Аппаратный ускоритель
- Прозрачное устройство L2
- Поддержка Jumbo Frame
- Поддержка BUC высокой мощности.
Характеристики
Receiver | |
Standard | DVB-S2 |
Modulation | QPSK, 8PSK,16APSK, 32APSK |
Channel Rate | Over 220Mbps |
Roll-off factors | 0.15, 0.2, 0.25, 0.35 |
Coding | LDPC and BCH decoder as for DVB-S2 pecifications |
Code Rates | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
Framing | DVB-S2 Normal and Short |
Modes | CCM, VCM, ACM |
Receiver RF | |
Input Frequency | Full L-Band range 950-2150MHz |
Symbol Rates |
100Ksps to 67.5Msps (Low SR requirePLL LNB, 32APSK performance up to 54Msps) |
Signal Level | -35 to -75 dBm |
Input Connector | Type F- 75 Ohms, SMA - 50 Ohms |

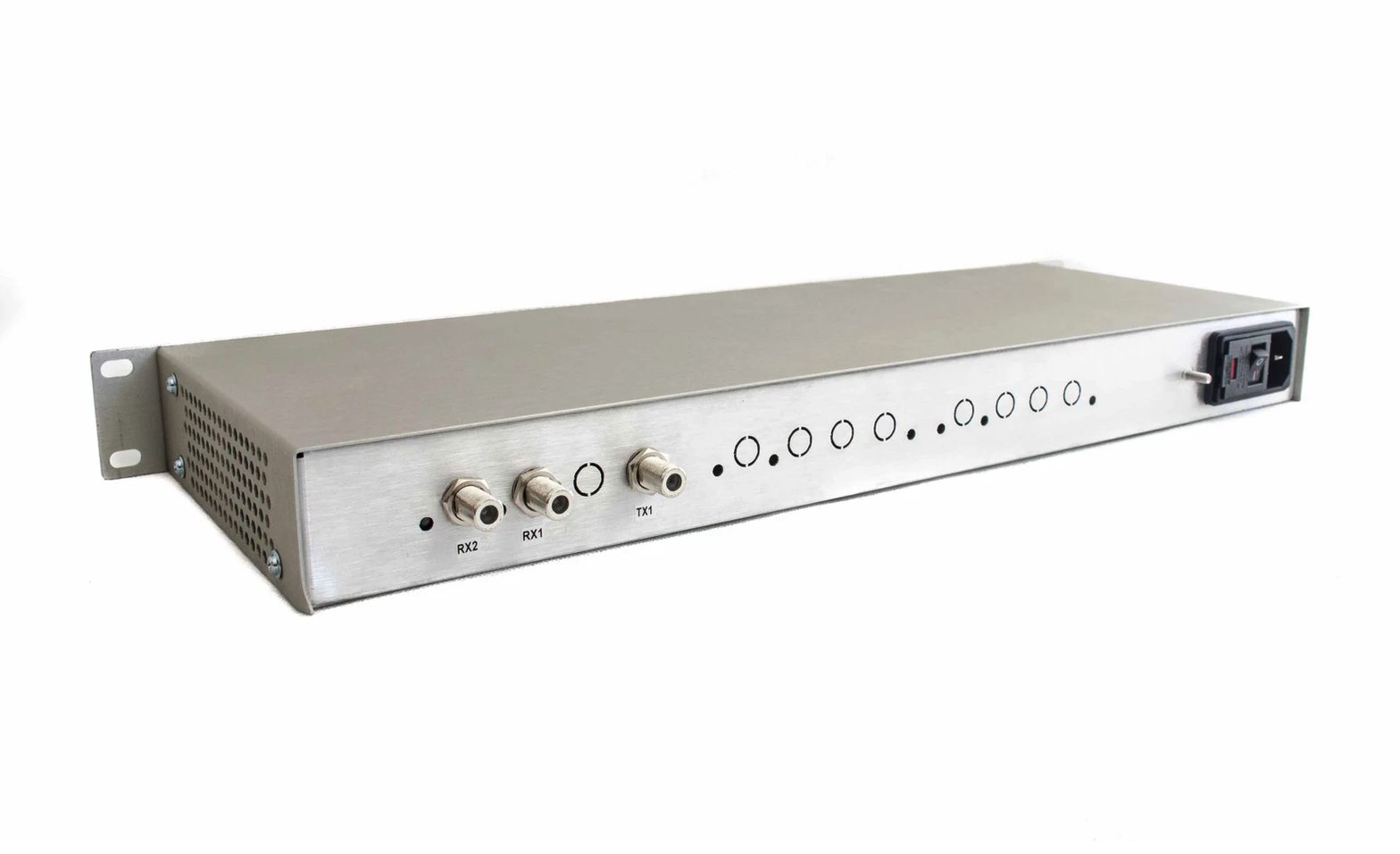

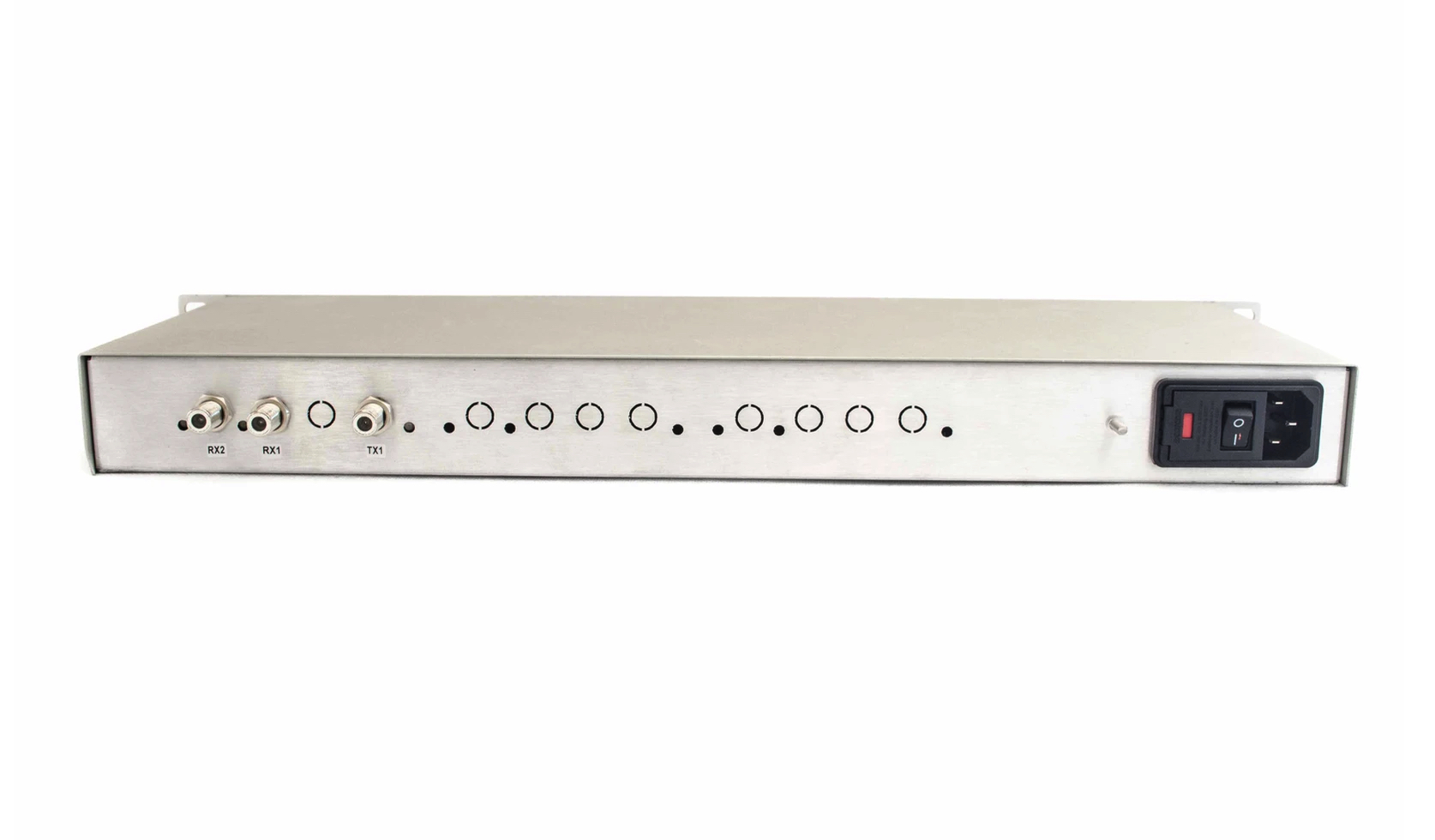

Redundancy | Two RF inputs with Automatic selection |
LNB Power | 14/18V, 22Khz, DiSEqC 2.0 |
Encapsulation | |
MPE | ETSI 301 192 |
GSE | ETSI TS 102 606 ETSI TS 102 771 |
BB Frames Over UDP | Comply with ESA / Sat labs L.3 protocol |
Transmitter SCPC – DVB-S2 mode | |
Modulation | QPSK,8PSK,16APSK, 32APSK |
Channel Rate | Up to 240Mbps |
Roll-of Factors | 0.05,0.1,0.15,0.2, 0.25, 0.35 |
Coding | LDPC and BCH decoder as for DVB-S2 requirements |
Code rates | ½, 3/5, 2/3, ¾, 4/5, 5/6, 8/9, 9/10 |
Output frequency range | Full L-Band 950-2150Mhz |
RF connector Type | Type-F, 75 Ohms / SMA 50 Ohms |
Output Spectrum | < 50dBc/4kHz, modulated carrier |
Excludes spectral | Mask area |
Phase Noise | Better than IESS-316 |
Reference clock | 10Mhz Internal, stability ±2.5 ppm |
Return loss | >10 dB |
Output OFF | Better than 50db |
Flatness | +/- 0.5 dB over any 36MHz band,+/- 2dB over the full band |
Network | |
Physical interfaces | RJ-45 10/100/1000 BaseT Auto Switching |
Traffic handling | MPE - L3, GSE - L2/L3 |
Forwarding path | Hardware based, Wire Speed |
GSE |
Tx - Up to 8 Different Label / MODCOD/ISI channels Rx - ISI + 4 labels advanced GSEVCM optimizer for high channel Utilization |
MPE |
Tx- Up to 1024 entries forward Rx - 8 PID/MAC filters |
Multicast | Supported |
IP address | Manual or DHCP |
BBFrames Over UDP | Based on ESA / Sat labs L.2 protocol |
Management port | Independent or using Traffic |
Control and Monitoring | |
Serial Port | Serial over USB CLI Switching |
IP | 10/100 BaseT interface CLI andSNMP Management |
Management interface | Configurable - DSCP, VLAN |
Maintenance | Software, Firmware and boot loader are field upgradable using TFTP |
SNMP Traps | RX Unlock, Link Margin low, LinkMargin High |
Web | PHP based* customizable on request |
Physical Characteristics | |
Board only | 3 cm x 10 cm x 15 cm (H x W x D 0.15K |
Rack mount | 1U 19 20 cm deep. 2.5 |
Power Supply | |
Desk top -No BUC power | 12V 2A DC |
Rack mount | 100V - 240V |
Power Consumption | |
Desk top -No BUC power | 15 Watts |
Standards compliancy | |
Safety | CE |
EMI/EMC | CC part 15, Class B |
