Приемник dAV-Rr-HD-TT
Подробнее
Описание

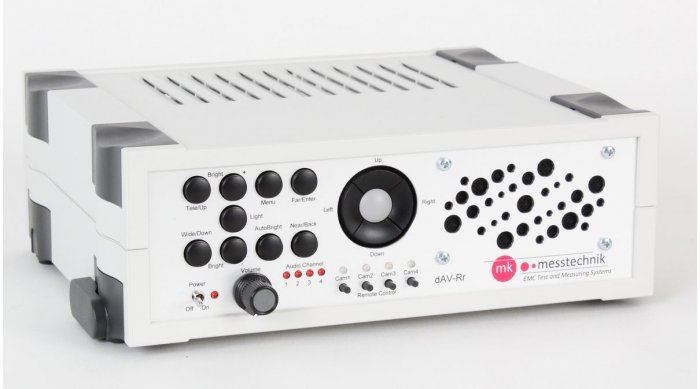

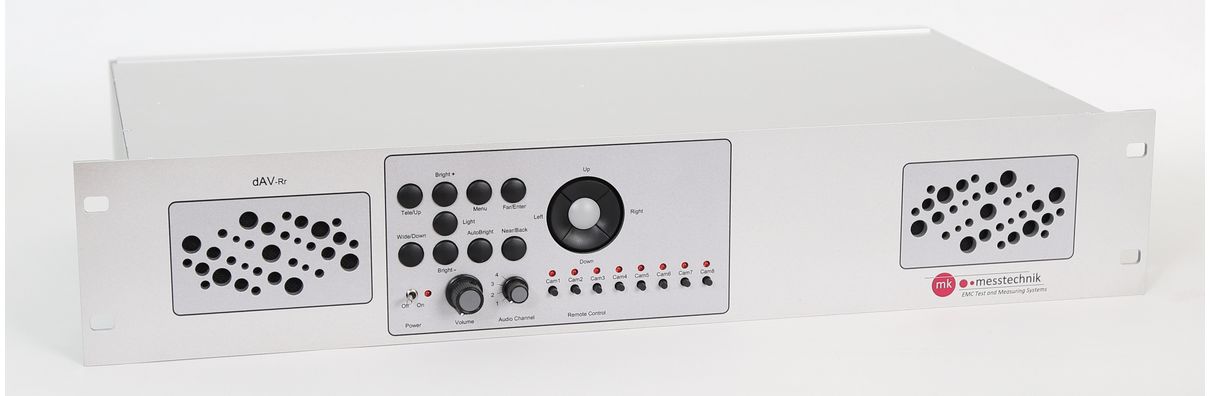

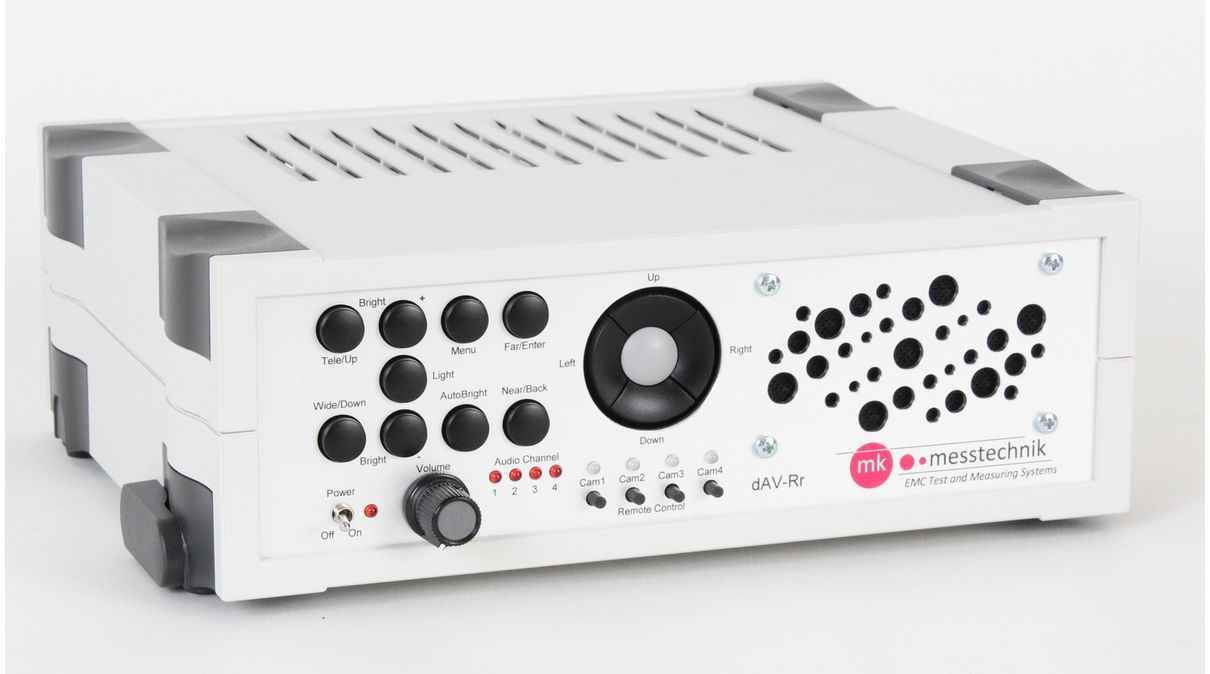

Базовая версия приемников dAV - это dAV-R, который имеет встроенный громкоговоритель с регулируемой громкостью, выход для стереопередачи и разъемы HDMI и BNC для видеовыхода. Приемник можно заказать в настольном корпусе или для монтажа в 19-дюймовую стойку. Доступны дополнительный выход SDI и разъем Ethernet. Настольный приемник можно заказать с 1-4 каналами.
В зависимости от заказанной конфигурации камерами и поворотно-наклонными устройствами можно управлять дистанционно. Приемник можно заказать с 1-8 каналами.
С дополнительным внешним пультом дистанционного управления dAV-Rrc-joy можно дистанционно управлять всеми функциями камер и устройств панорамирования / наклона.
Характеристики
| Technical data | |
| HD Channels | 1-4 (table top) or 1-8 (19”) Full-HD A/V channels |
| 1-20 or 1-38 (19” switch matrix) Full-HD A/V channels | |
| Audio OUT |
one integrated loudspeaker in table top version two loudspeakers integrated in 19“ rack mount channel selectable via push button |
| Line OUT | 3.5mm plug for each integrated channel, impedance 2.2kΩ |
| Video OUT |

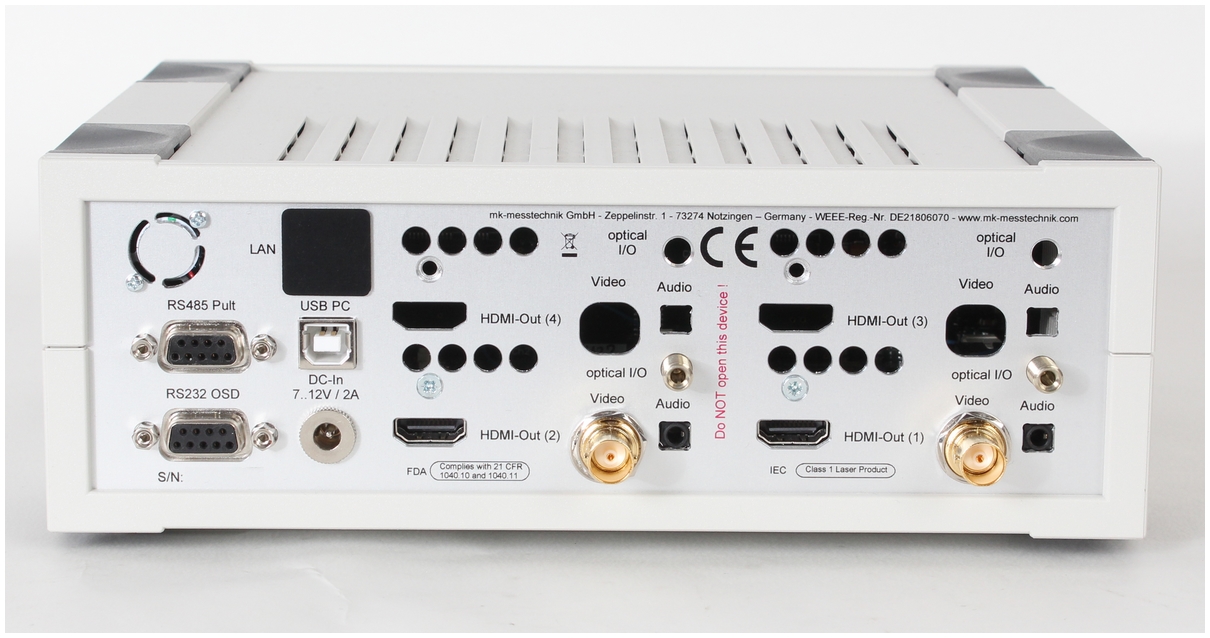

standard: HDMI (1920x1080p60) with integrated audio CVBS (720x576i50) via BCN plug, e.g. for low quality recording functions optional: SDI 1080p60 Level A (integrated audio too) |
| Case dimensions | 220mm x 160mm x 110mm table top case or 19“ rack mount (2HU) |
| Weight | approx. 1000g |
| Misc. | remote control for all HD cameras and pan- / tilt units PT-02/PT-03 |
| Available options |

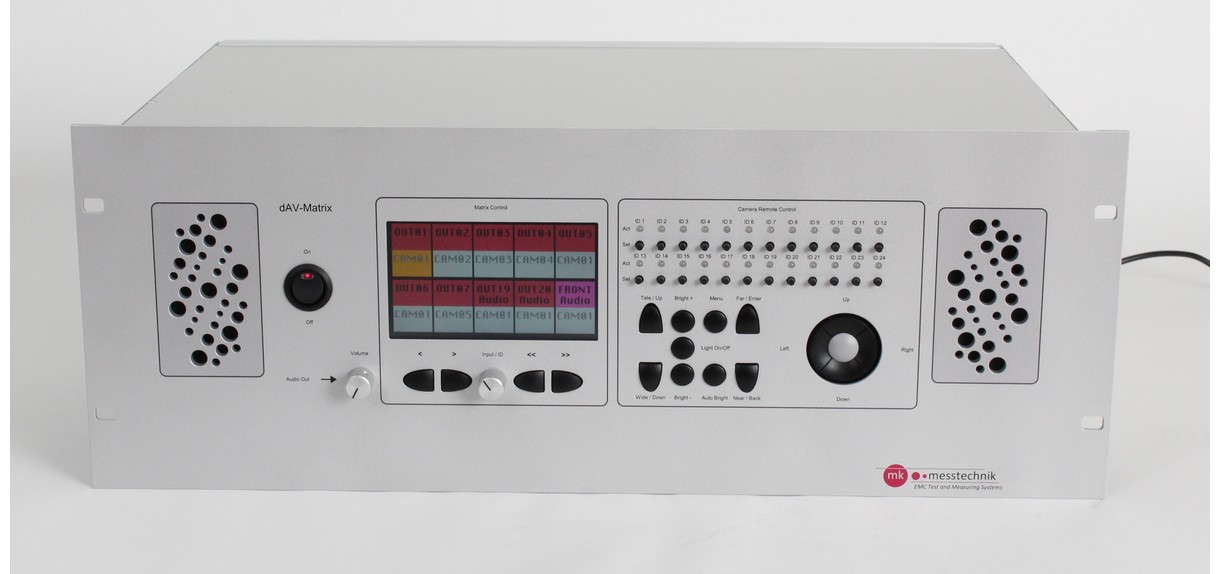

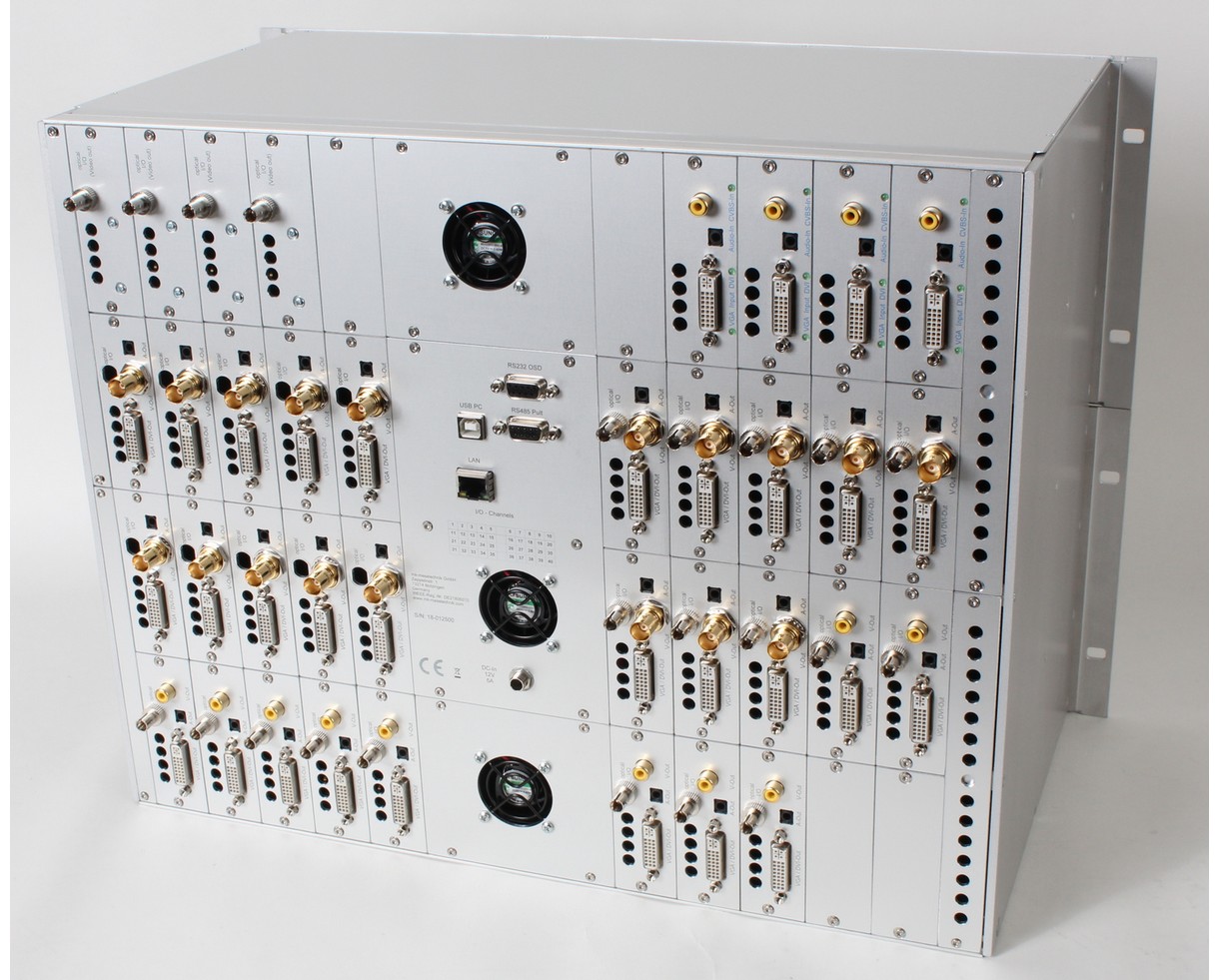

switch matrix receiver (4HU) for up to 20 free in- and outputs switch matrix receiver (8HU) for up to 38 free in- and outputs software remote (all functions + adjustable output res., frame rate etc.) ethernet remote control interface on screen display OSD (for frequency, field strength, time, date etc.) remote table top control with joystick quad view system (Full view, pip and quad mode possible) IP based streaming client (Full-HD streaming) Full-HD Recording as well as SD recording of CVBS out Motion detection with triggered recording |
Документы
Описание
| Наименование | Описание |
| Camera control software ccs | For the remote control via software, with GUI (cominterface nexessary). In order to use this software, the camera receiver is connected to a PC via USB (built into all receivers) or ethernet (optional) |
| Remote control via software | With Ethernet-GUI (option -ethernet remote) |
| On Screen Display | OSD, display of DUT-data in video stream, cominterface and drivers for your HF software necessary |
| 30x zoom for HD-Kameras | e.g. for large EMC chambers |
| Wide angle and close-up lens | lens |
| ST optical connectors | connectors |
| External remote control for dAV-Rrc-Joy and dAV-Rrc-Joy-matrix | External remote control for dAV-Rrc-Joy and dAV-Rrc-Joy-matrix for all functions of the camera and the multichannel receiver. Up to 8 and 16 cameras can be addressed directly by pushbuttons, the connected pan/tilt units can be controlled with the joystick. Twist the joystick to zoom with the camera (tele/wide), push forward and backward for moving the pan/tilt in the y-axis, turn left or right for the x-axis. The dAV-Rrc-Joy is supplied by the remote connector of the receiver, no additional power supply is necessary. |
| Option -HiRF | With the option -HiRF, camera and pan/tilt unit are fit for very high field strengths and frequencies. The devices are equipped with additional screws and special cables for a high immunity: >> 600V/m up to 40GHz. |
| Power supply | External battery pack BP120-5f AND/OR Shielded external power supply SPS120 for wall mount setups (230V and 110 V available) |
