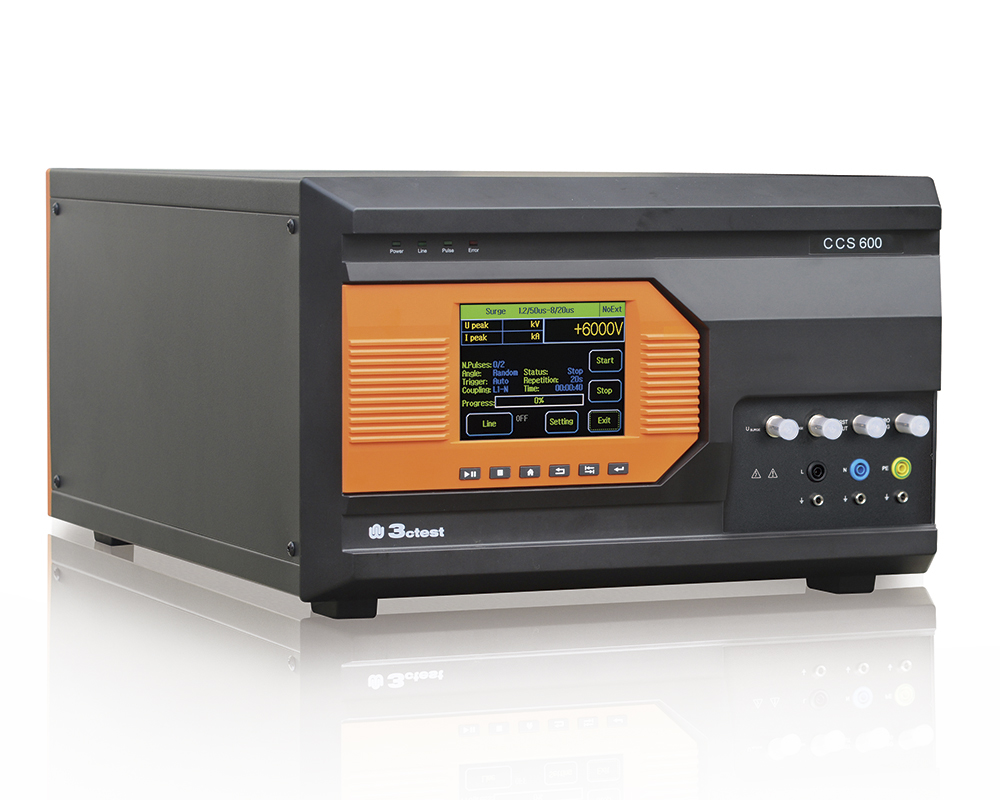

Испытательный комбинированный генератор 3ctest CCS 600
Подробнее
Описание
CCS600 — это интеллектуальная многофункциональная компактная система для испытаний на помехоустойчивость (EMS), соответствующая всем требованиям международных стандартов и стандартов на изделия для переходных импульсов, скачков напряжения и провалов напряжения. Сертификация CE и сертификация CCC для однофазных устройств. Это может быть встроенная автоматическая однофазная сеть соединения/развязки. Трехфазный пятипроводный тест также может быть проведен по внешней соединительной сети (до 100А). Вам предоставляется ряд необходимых принадлежностей для выполнения требований испытаний, таких как испытание магнитным полем промышленной частоты.
Функции:
- Цветной сенсорный экран с диагональю 5,7 дюйма
- Обнаружение сбоев при перенапряжении
- Сбор данных о перенапряжении и токе
- Функция планирования испытаний
- Многофункциональные модули
- Внутренний полностью автоматический однофазный переменный ток 250 В, 16 А; DC-1, 110 В, 12 А
- Доступен для управления внешней трехфазной CDN
- Ethernet, RJ45, ПК для дистанционного управления, документации и печати отчетов об испытаниях
Характеристики
| General Parameters | ||||
| Display Screen | 5.7” TFT color touch screen | Power Supply | AC 110 V/220 V(士10%)， 50 Hz /60 Hz, (±5%) （default AC 220 V 50 Hz in mainland China） | |
| Fuse | 6 A | Max. Power Consumption | 200 W | |
| Memory Space | Infinite（PC） | Communication Mode | Ethernet, RJ45 | |
| Dimension | 19”/6U | Weight | Approx. 41 kg | |
| Ambient Temperature | 15℃-35℃ | Relative Humidity | 45%-75% | |
| Atmospheric Pressure | 86 kPa-106 kPa | |||
| EFT/burst Tests as per IEC 61000-4-4 | ||||
| Test Voltage | 0.25 kV-4.8 kV(±10%） | Source Impedance | 50 Ω | |
| Polarity | Positive, negative, alternative | Rise Time | 5 ns(±30%), 50 Ω load, 1000 Ω load | |
| Pulse Waveform | 5/50 ns, 50 Ω and 1000 Ω load | Pulse Frequency | 0.1 kHz-1000 kHz | |
| Pulse Duration | 50 ns±30%, 50 Ω load | Burst Duration | 0.075 ms-750 ms | |
| 50 ns-15/+100 ns，1000 Ω load | Test Duration | 1 s-9999 s | ||
| Burst Cycle | 11 ms-9999 ms | Synchronization | 0° - 360°, 1° step or random | |
| Trigger Mode | Automatic, manual or external trigger | CDN | Internal single phase automatic CDN: Single-phase-3-line AC 220 V 16 A Max 250 V | |
| Surge Tests as per IEC61000-4-5 | ||||
| Test Voltage | 0.3 kV-6 kV（±10%） | Test Current | 0.15 kA-3 kA（±10%） | |
| Voltage Waveform | Front time: 1.2 μs (±30%), Time to half value: 50 μs (±20%) | Source Output Impedance | 2 Ω | |
| Current Waveform | Front time: 8 μs (±20%), Time to half value:20 μs (±20%) | Coupling Capacitance | 9 μF, 18 μF | |
| Polarity | Positive, negative, alternative | Pulse Cycle | 5 s-99 s (the shortest depends on test voltage） | |
| Coupling Resistance | 10 Ω, 0 Ω coupling resistor Either IEC standard mode or customized mode is optional | Number of Test | 1–999 | |
| Surge Voltage and Current Peak Detection | Front panel BNC output, surge voltage: 1000 V:1 V Surge current :500 A:1 V 3 digits on display | Synchronization | 0° - 360°, 1° step or random | |
| Trigger Mode | Automatic, manual or external trigger | CDN | Built-in single phase automatic CDN Single-phase-3-line AC 220 V 16 A Max. 250 V | |
| PFMF Tests as per IEC61000-4-8 with optional module MFT 400/1200 or VMT series | ||||
| Magnetic Field Strength | TCXS 111 Single-turn coil: 1 A/m -100 A/m (continuous) 100 A/m -400 A/m (1 s-10s in short time) TCXS 113 Single-turn coil： 1 A/m -300 A/m (continuous) 300 A/m -1200 A/m (1 s-10 s in short time) | Current Distortion Rate | <5% | |
| Current Waveform | 50 Hz/60 Hz sine wave | Operating Current Range for Short Time | 120 A-500 A | |
| Continuous Operating Current Range | 1 A-120 A | Test Duration | 1 s-28800 s | |
| Magnetic Field Output Accuracy | Deviation 1dB（minimal magnetic field intensity like 1A/m needs to be adjusted manually before tests.） | Waveform Interval | 1 s-9999 s | |
| Coil Size | 1000 mm *1000 mm or others | Trigger mode | Auto, Manual, External signal trigger | |
| Coil Turn | Single-turn /three-turn | Coil shape | Rectangle or others | |
| Output Magnetic Field Strength | Test Sequencing setup | |||
| Pulse Magnetic Field Tests as per IEC 61000-4-9 with optional module PMC 1200 | ||||
| Output Magnetic Field Range | 100 A/m-1200 A/m | Waveform | Rise time:6.4 μs (±30%); duration: 16 μs (±30%) | |
| Output Current | 100 A-2000 A | Polarity | Positive, negative, alternative | |
| Synchronization | 0°- 360°, 1°step or random | Pulse Cycle | 5 s-99 s（the shortest depends on test current） | |
| Trigger Mode | Automatic, manual or external trigger | Coil Shape | Rectangle | |
| Number of Test | 1-999 | Model of Coil | TCXS 111 | |
| Coil Size | 1000*1000mm | Output Magnetic Field Strength | Test sequencing setup | |
| Coil Turn | Single | |||
| Power Fail Tests as per IEC 61000-4–11 (with Optional Module VVT or VMT series) & IEC 61000-4-29 | ||||
| EUT Max. Voltage | 250 V AC, 220 V DC | EUT Max. Current | AC/DC 16 A continuous current; AC 20 A continuous 5 s; 40 A continuous 3 s; 500 A impulse current | |
| EUT Current and Voltage Measurement | LCD display, BNC terminal: voltage 100:1, current 10 A:1 V | Dip Level | 0%-100%（for VVT/VMT series） 0%，40%，70%，80%(for VVTxxxxSFseries) | |
| Interruption level | 0% | Dip and Interruption Interval | 5 ms-9999 ms | |
| Dip and Interruption Duration | 0.1-9999 cycle or 1 ms-9999 ms | Dip and Interruption Rise/Fall Time | 1 µs -5 µs (100 Ω load) | |
| Dip and Interruption Test Duration | 1 s-9999 s | Time of Voltage Variation Decreasing | 500 ms-9999 ms (50%-100%) or abrupt (same with rise/ fall time for dips and interruption) 1000 ms-9999 ms (0%-100%) or abrupt (same with rise/ fall time for dips and interruption) | |
| Voltage Variation Level | 0-100% | Duration after Voltage Variation Decreasing | 10 ms-99999 ms | |
| Time of Voltage Variation Increasing | 500 ms-9999 ms（50%-100%） 1000 ms-9999 ms（0%-100%） | Trigger Mode | Automatic, manual or external trigger | |
| Synchronization | 0°- 360°, 1° step or random | |||
Документы
Описание
Модели
| Models Selection | ||||||||
| Name | Model | IEC 61000-4-4 | IEC 61000-4-5 | IEC 61000-4-8 | IEC 61000-4-9 | IEC 61000-4-11 | IEC 61000-4-29 | CDN single- phase-3-line |
| Compact Immunity Test System | CCS 600 | √ | √ | √ | √ | √ | √ | √ |
| EFT/Burst CDN | EFTN 3816T | √ | ||||||
| Surge CDN | SPN 3816T | √ | ||||||
| EFT/Burst and Surge CDN | SEPN 3816T | √ | √ | |||||
| SEPN 3832T | √ | √ | ||||||
| Power Frequency Magnetic Module | MFT 400 | √ | ||||||
| MFT 1200 | √ | |||||||
| AC Voltage Dips, Short Interruption and Variation Module | VVT 2216S | √ | ||||||
| VVT 2216SV | √ | |||||||
| Power Fail and Power Frequency Magnetic Module | VMT 2216S | √ | √ | |||||
| VMT 2216SV | √ | √ | ||||||
| Pulsed Magnetic Field Converter | PMC 1200 | √ | ||||||
| Accessories | ||||||||
| User Manual, Fuse×2（spare parts）, Flat Grounding Wire, Radio-Frequency Wire, Testing Wire, Power Supply Wire | ||||||||
