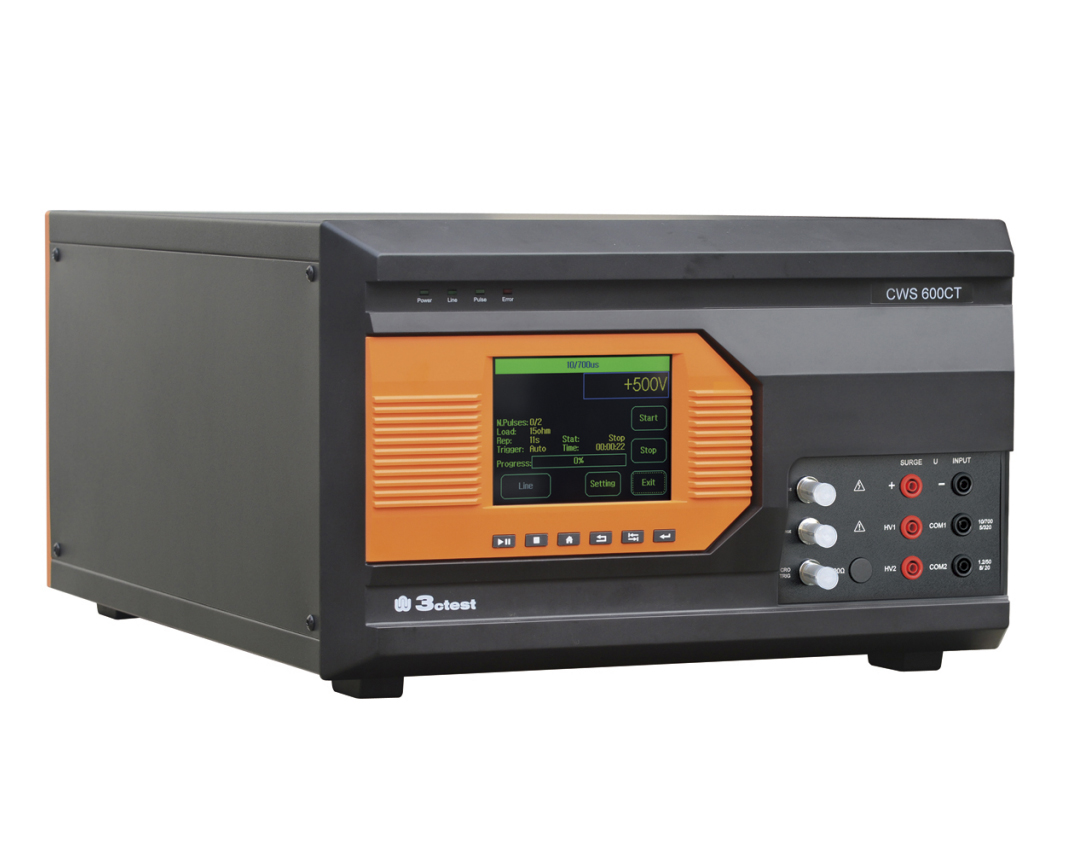

Испытательный генератор 3ctest CWS 600CT
Подробнее
Описание
Комбинированный имитатор перенапряжений CWS 600CT специально разработан для имитации помех импульсных перенапряжений и выдает импульсы высокого напряжения с формами 1,2/50 мкс, 8/20 мкс, 10/700 мкс, 5/320 мкс. Он может полностью соответствовать требованиям стандарта IEC 61000-4-5. CWS 600CT также может соответствовать требованиям CE и CCC и выполнять испытания на перенапряжение с внешней сетью связи/развязки.
Характеристики
| General parameters | |
| Display screen | 5.7inch TFT Touch Screen |
| Range of working power supply | AC 110V/220V，±10%，50/60Hz±5%（AC 220V/50Hz for China） |
| Fuse | 6A |
| Max. Power dissipation | 200W |
| User storage space | Infinity（PC） |
| Communication mode | Ethernet、RJ45 |
| External control mode | BNC,5VTTL |
| CRO trigger output | BNC,5VTTL |
| Run control input | BNC,5VTTL |
| External Sync input |
45-65Hz, 20-500V between dotted end and no dot end 0-500V among dotted end, no dot end and crate |
| Output of Warning lamp |
0-220VAC 10A/0-48VDC 3A The power supply depends on the types of external signal lamp. |
| Safety circuit | Stop working when the safety loop is open circuit. |
| Failure detection | LCD will display the failure on the front panel and interrupt instrument working. |
| Instrument working status indicator | LED on the front panel indicates and LCD displays |
| Instrument grounding connection | Use flat ground wire |
| EUT power input | 4mm2 banana plug wire |
| Detection output mode | Standard 1m coaxial cable |
| Size of crate（W*H*D） | 19 inch/6U |
| Weight | Approx.34Kg |
| Temperature range | 15–35℃ |
| Humidity range | 45%-75% |
| Air pressure range | 86kPa～106kPa |
| 1.2/50us、8/20us technical parameters | |
| Standards | IEC/EN 61000-4-5、GB/T 17626.5、UL 1449 、 ANSI C62.41 |
| Test voltage range | 0.3kV–6.0kV± 10% |
| Voltage rise time | 1.2us± 30% |
| Voltage duration | 50us± 20% |
| Test current range | 0.15 kA–3.0kA± 10%（2ohm） |
| Current rise time | 8us± 20% |
| Current duration | 20us± 20% |
| Output impedance | 2ohm、12ohm optional |
| Other impedance | 500ohm 1.2/50us pulse withstand voltage test |
| Test interval | 6s-99s (the shortest time depends on the test voltage) |
| Voltage peak detection | Front panel BNC output:1000V:1V；LCD display the measured value |
| Current peak detection | Front panel BNC output::500A:1V；LCD display the measured value |
| Test times | 1–999 |
| Trigger mode | Auto, manual and external trigger input |
| Test mode | Scheduling setting test parameters |
| CDN | Optional for external SPN series CDN |
| 10/700us、5/320us technical parameters | |
| Standards |
IEC/EN 61000-4-5、GB/T 17626.5 UL 1449、ANSI C62.41 |
| Test voltage range | 0.3kV–6.0kV± 10% |
| Voltage rise time | 10us± 20% |
| Voltage duration | 700us± 20% |
| Current rise time | 5us± 20% |
| Current duration | 320us± 20% |
| Output impedance | 15ohm、40ohm optional |
| Test interval | 11s-99s (the shortest time depends on the test voltage) |
| Voltage peak detection | Front panel BNC output:1000V:1V； |
| Current peak detection | Front panel BNC output:500A:1V； |
| Test times | 1–999 |
| Trigger mode | Auto, manual and external trigger input |
| Test mode | Scheduling setting test parameters |
| CDN | Optional for external CDN-405 series CDN |
Документы
3Ctest CWS 600CT Specification
835.5 Кб
Описание
| Optional functions and accessories | |
| Surge CDN |
SPN series IEC61000-4-5 SPN 3816T/32T (three phase 380V 16A/32A) SPN 38100T (three phase 380V 100A) SPN 6916T/32T (three phase 690V 16A/32A) |
| Signal line/Communication line CDN IEC61000-4-5 | 4-wire communication line CDN / 8-wire communication line CDN |
| Pulse magnetic field converter PMC1200 IEC 61000-4-9 | |
| Magnetic coil |
TCXS111 single-turn coil 1m×1m IEC61000-4-8 TCXS113 three-turn coil 1m×1m IEC61000-4-8 |
| HV Differential probe, VCF-80 test voltage 8KV，attenuation 1000：1 | |
| Wide-band Current Monitor | CM 0220M |
