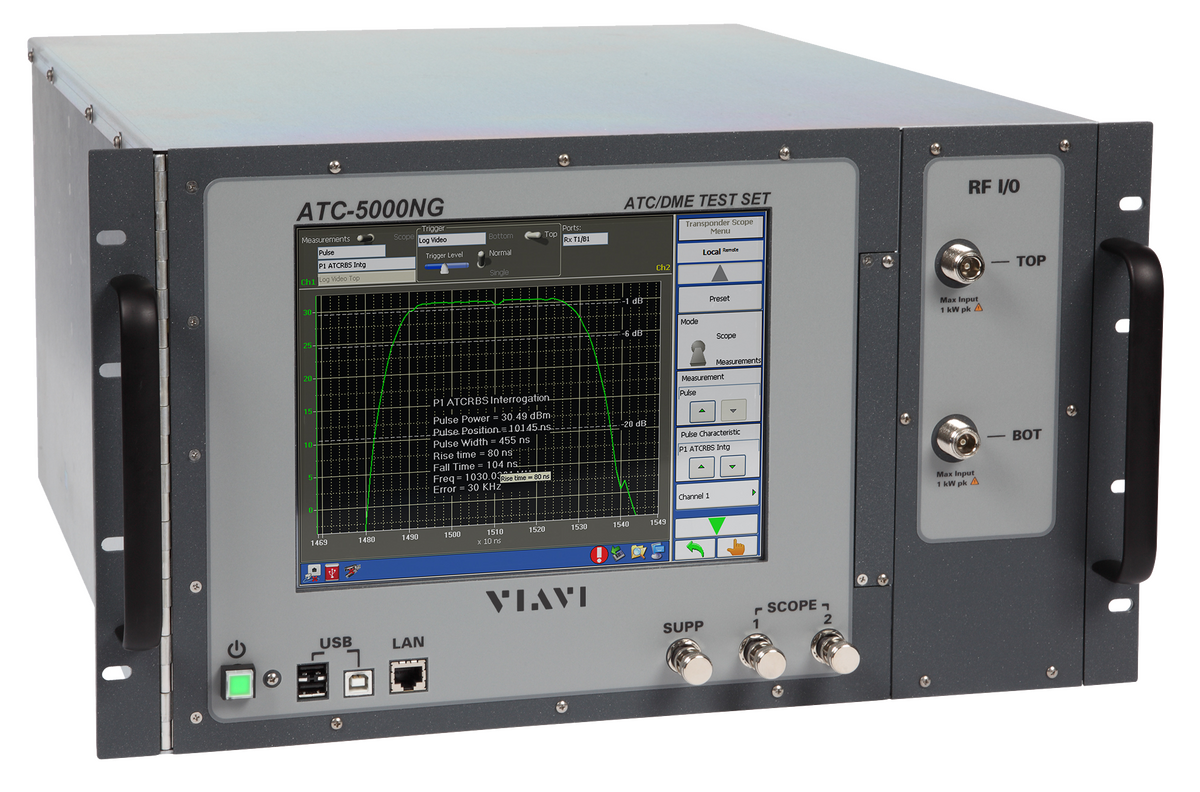

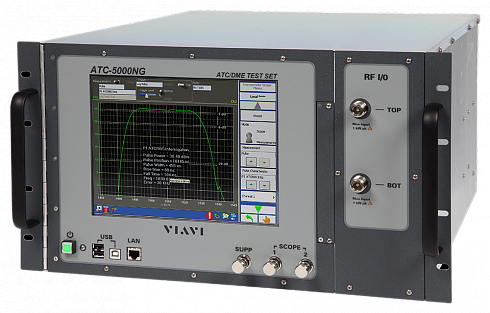

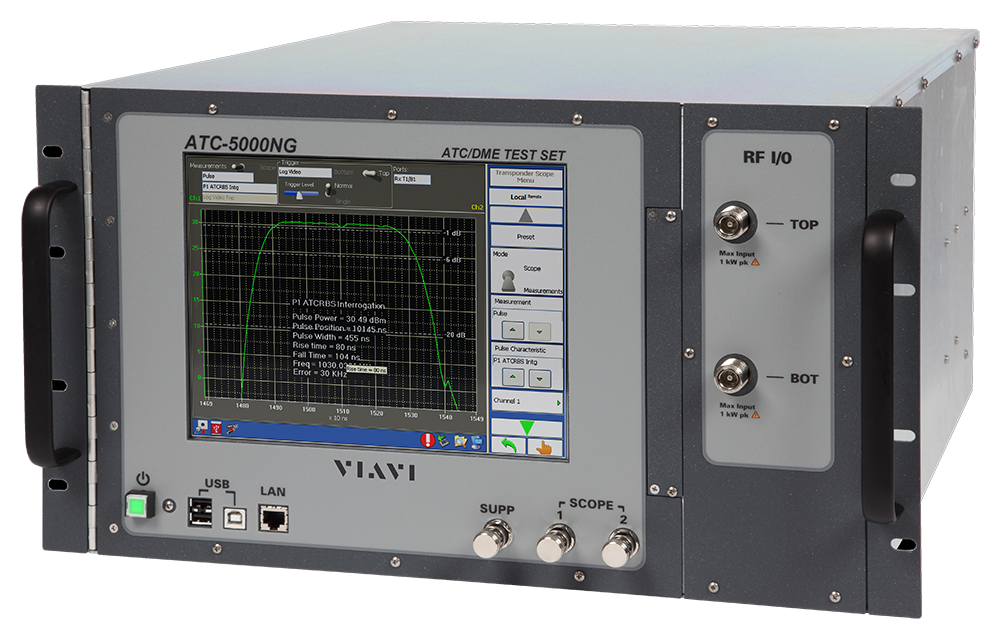

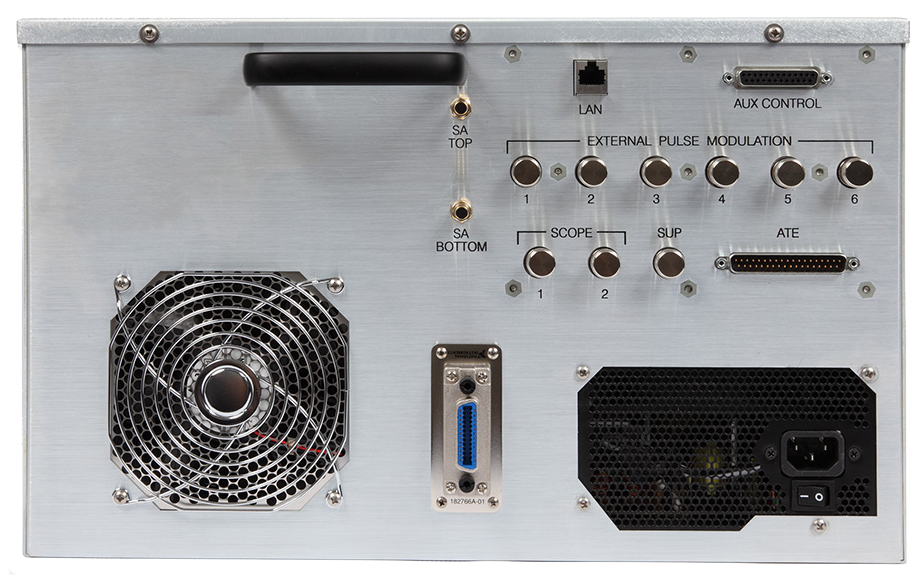

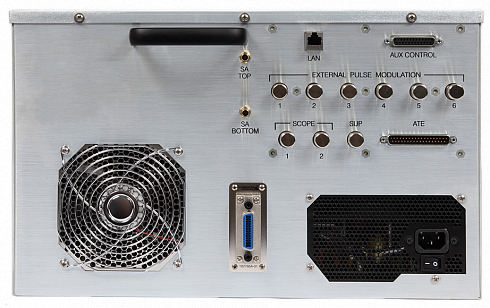

Модель ATC-5000NG для тестирования транспондеров / комплексов DME и генератор цели ADS-B
Подробнее
Описание
Тестер следующего поколения для систем УВД и DME
Готовность к глобальной модернизации УВД благодаря технологиям тестирования следующего поколения
Возможность обновления «на местах» с добавлением новых функций, возможностей или изменений в соответствии с отраслевыми требованиями
ATC-5000NG — генератор / приемник РЧ сигнала для тестирования приемоответчиков режима A, C и S. АTC-5000NG был разработан с использованием современных программных радиотехнологий и является заменяющим продуктом для коммерческой функциональности моделей SDX-2000, ATC-1400A и S-1403DL. Испытательный комплект создан для инженерной разработки, проверки конструкции, производства и тестирования при возврате в эксплуатацию.
Тестируемое оборудование
- Транспондеры в режиме передатчиков S/ADS-B
- Приемники ADS-B
- Трансиверы UAT
- Источники сигнала 1090 МГц DF18 (наземные транспортные средства)
- Приемники ADS-B на наземных станциях
- Передатчики ADS-R и TIS-B на наземных станциях
- DME
Сферы применения:
- Инженерная разработка, сертификация, производство и обслуживание
- Выполнение большинства тестов по стандарту MOPS для DO-181E, DO-260, DO-260A, DO-260B, DO-282B
Характеристики
Transmitter
| Frequency | |
| Range | 952 MHz to 1223 MHz |
| Resolution | 100 KHz |
| Accuracy | 2.5 ppm |
| Phase Noise | >80 dBc/Hz @ 100 KHz |
| Power | |
| Range (Transponder) | +5 to -110 dBm |
| Resolution | 0.1dB |
| Accuracy @ 1030 MHz | +1 dB [+5 to -100 dBm] |
| +3 dB [< -100 dBm] | |
| Range (UAT) | +5 to -110 dBm |
| Resolution | 0.1dB |
| Accuracy | +1 dB @ 978 MHz |
| Range (DME) | +5 to -110 dBm |
| Resolution | 0.1dB |
| Accuracy | +1 dB [+1 to -100 dBm] |
| +3 dB [< -100 dBm] | |
| 952 to 1223 MHz | |
| Spectral Purity | |
| Harmonics | >50 dBc |
| Spurious | >55 dBc, 350 to 1800 MHz |
| Residual FM | 250 Hz Peak |
| Channels | |
| No. of Channels | 4 (XPDR/UAT) |
| 6 (ADS-B Option) | |
| Diversity | |
| Power | +20 dB |
| Resolution | 1dB |
| Accuracy | +1dB |
| Timing | +1 uS |
| Resolution | 25 nS |
| Accuracy | +10 nS |
| Modulation | |
| Pulse On/Off Ratio | >80 dB |
| Pulse Position (high speed rise/fall time mode) | |
| Mode A Interrogation P1-P3 Default | 8.0 uS |
| Accuracy | +10 nS |
| Mode C Interrogation P1-P3 Default | 21.0 uS |
| Accuracy | +10 nS |
| ATCRBS Interrogation P1-P2 Default | 2.0 uS |
| Accuracy | +10 nS |
| ATCRBS Interrogation P3-P4 Default | 2.0 uS |
| Accuracy | +10 nS |
| ATCRBS Interrogation Variation | +1.95 uS |
| Resolution | 25 nS |
| Accuracy | +10 nS |
| Mode S Interrogation P1-P2 Default | 2.0 uS |
| Accuracy | +10 nS |
| Mode S Interrogation P1-P2 Variation | +1.0 uS |
| Resolution | 25 nS |
| Accuracy | +10 nS |
| Mode S Interrogation P1 to P6 Default | 3.5 uS |
| Accuracy | +10 nS |
| Mode S Interrogation P6 Variation | +1.95 uS |
| Resolution | 25 nS |
| Accuracy | +10 nS |
| Mode S Interrogation P2 to SPR Default | 2.75 uS |
| Accuracy | +10 nS |
| Mode S Interrogation SPR Variation | +1.0 uS |
| Resolution | 25 nS |
| Accuracy | +10 nS |
| Mode S Interrogation P5 prior SPR Default | 400 nS |
| Accuracy | +10 nS |
| Mode S Interrogation P5 Variation | +1.95 uS |
| Resolution | 25 nS |
| Accuracy | +10 nS |
| Interference Interrogation Signal #1 | -44 to 400 us |
| Resolution | 25 nS |
| Accuracy | +10 nS |
| Interference Interrogation Signal #2 | 0 to 400 us |
| Resolution | 25 nS |
| Accuracy | +10 nS |
| Double Interrogation | 0 to 400us |
| Resolution | 25 nS |
| Accuracy | +10 nS |
| Pulse Width (high speed rise/fall time mode) | |
| ATCRBS Interrogation P1/P2/P3 Default | 8.0 uS |
| Accuracy | +10 nS |
| ATCRBS Interrogation P4 Short | 0.8 uS |
| Accuracy | +10 nS |
| ATCRBS Interrogation P4 Long | 1.6 uS |
| Accuracy | +10 nS |
| ATCRBS Interrogation P1/P2/P3/P4 Variation | 0 to 1.95uS |
| Resolution | 25 nS |
| Accuracy | +10 nS |
| Mode S Interrogation P1/P2 Default | 0.8 uS |
| Accuracy | +10 nS |
| Mode S Interrogation P1/P2 Variation | 0 to 1.95uS |
| Resolution | 25 nS |
| Accuracy | +10 nS |
| Mode S Interrogation P6 Short Default | 16.25 uS |
| Accuracy | +10 nS |
| Mode S Interrogation P6 Long Default | 30.25 uS |
| Accuracy | +10 nS |
| Mode S Interrogation P6 Variation | |
| P6 Overall | -0.5 to +1.45 uS (offset range) |
| P6 End | 0 to 1.95uS |
| Resolution | 25 nS |
| Accuracy | +10 nS |
| Mode S Interrogation P5 Default | 0.8 uS |
| Accuracy | +10 nS |
| Mode S Interrogation P5 Variation | 0.2 to 1.95 uS |
| Resolution | 25 nS |
| Accuracy | +10 nS |
| Interference Pulse Width | 0.2 to 32.0 uS |
| Resolution | 25 nS |
| Accuracy | +10 nS |
| Pulse Rise/Fall Time | |
| Transponder | <50 / <50nS |
| Accuracy | <50 nS |
| Pulse Amplitude | |
| Video Data Block Variation | +3 to -4 dB |
| Resolution | 1 dB |
| Accuracy | +1 dB |
| ATCRBS Interrogation Variation | +9 to -19 dB |
| Resolution | 1 dB |
| Accuracy | +1 dB |
| Interference | +9 to -19 dB |
| Resolution | 1 dB |
| Accuracy | +1 dB |
| Block Transmissions | |
| XPDR | 2000 messages |
| No. of Blocks | 1 to 50,000 or indefinite |
| Interrogation Rate within Block | User defines spacing between interrogations |
| Period | 10 ms to 90 seconds |
| Resolution | 1 dB |
| Accuracy | +1 dB |
| PRF | |
| ATCRBS Interrogations | 1 to 10,000 Hz |
| Resolution | 1 Hz |
| Accuracy | 0.1% of setting |
| Mode S Interrogations | 1 to 2500 Hz |
| Resolution | 1 Hz |
| Accuracy | 0.1% of setting |
| Double Interrogation | |
| Each message: | 1 to 2500 Hz |
| PRF | in sync or non-sync |
| Resolution | 1 Hz |
| Accuracy | 0.1% of setting |
| Interlace | 1 to 400Hz |
| Resolution | 1 Hz |
| Accuracy | 0.1% of setting |
| Interlace Ratio | |
| Ratio | 1:1 to 1:1000 |
| DME Simulation | |
| Ident Frequency | 1350 Hz |
| Accuracy | +0.02% |
| Dot Default | 120 ms |
| Accuracy | +1 ms |
| Dot Variation | 50 to 250 ms |
| Resolution | 10 ms |
| Accuracy | +1 ms |
| Dash Default | 360 ms |
| Accuracy | +1 ms |
| Dash Variation | 150 to 750 ms |
| Resolution | 10 ms |
| Accuracy | +1 ms |
| Space Default | 150 ms |
| Accuracy | +1 ms |
| Space Variation | 50 to 250 ms |
| Resolution | 10 ms |
| Accuracy | +1 ms |
| Code Rate Default | 37 s |
| Accuracy | +100 ms |
| Code Rate Variation | 10 to 65 s |
| Resolution | 0.1 s |
| Accuracy | +100 ms |
| Echo Power Variation | -15 to +6 dB |
| Resolution | 0.1 dB |
| Accuracy | +0.25 dB |
| Echo Range | 30 nmi |
| Accuracy | +0.02 nmi |
| Range | 0 to 400nmi |
| Resolution | 0.01 nmi |
| Accuracy | +0.02 nmi |
| Velocity | 0 to 10000 knots |
| Resolution | 1 knot |
| Accuracy | +0.001% |
| Acceleration | 0 to 400 ft/s2 |
| Resolution | 1 ft/s2 |
| Accuracy | +0.05% of setting |
| Squitter | 0 to 8000Hz |
| Resolution | 1 Hz |
| Accuracy | 10 Hz or 2%, whichever is greater |
| Spectrum at +800 KHz Offset | > 55dB below center frequency level |
| Reply Efficiency | 0 to 100 % |
| Resolution | 1% |
| Accuracy | +0.5% |
Receiver
| VSWR | |
| < 1.4 | |
| Max Input Power | |
| +60 dBm | |
| Receiver Decoding | |
| Messages | ATCRBS Interrogation and Replies |
| Mode S Interrogations and Replies | |
| UAT Ground and Airborne Messages [UAT Option] | |
| Dynamic Range | |
| 1090 MHz | > 40 dB |
| UAT | > 30 dB |
| Channels | |
| No. of Channels | 2, Top/Bottom |
| Measurement | |
| Power | +17 to +60 dBm |
| Resolution | 0.1 dB |
| Accuracy | + 0.5 dB |
| Frequency | |
| Pulse Measurement Type | 1090 MHz +3 MHz |
| Resolution | 1 KHz |
| Accuracy | +50 KHz |
| Pulse Spacing | |
| Resolution | 1 nS |
| Accuracy | +10 nS |
| Pulse Width | |
| Resolution | 1 nS |
| Accuracy | +10 nS |
| Pulse Rise/Fall Time | |
| Resolution | 1 nS |
| Accuracy | +20 nS |
| ATCRBS Reply Delay | |
| Resolution | 25 nS |
| Accuracy | +20 nS |
| Mode S Reply Delay | |
| Resolution | 25 nS |
| Accuracy | +20 nS |
| Reply Jitter | |
| Resolution | 25 nS |
| Accuracy | +20 nS |
Документы
Viavi ATC-5000NG Brochure
338.7 Кб
Описание
| Наименование | Описание |
| ATC-5000NG | Transponder Test Set |
| ATCNGOPT01 | DME Option |
| ATCNGOPT02 | UAT 978MHz Option |
| ATCNGOPT03 | Multi-Receiver Option |
| ATCNGOPT04 | SDX Command Set Compatibility Option |
| ATCNGOPT05 | 1400/1403 Command Set Compatibility Option |
| ATCNGOPT06 | DO-260B MOPS Test Option |
| Accessories | Transit Case |
