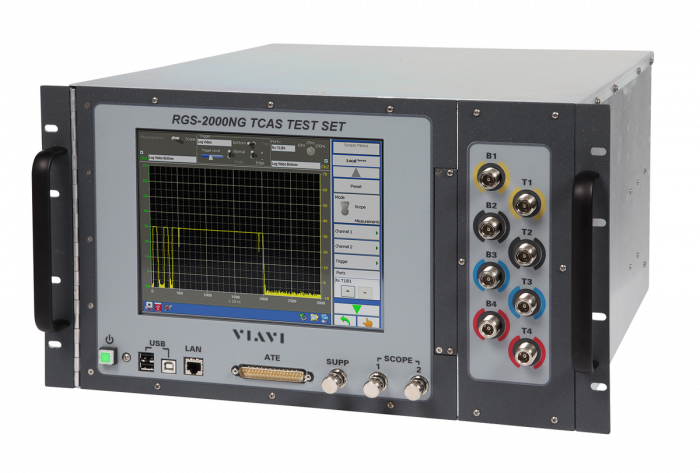

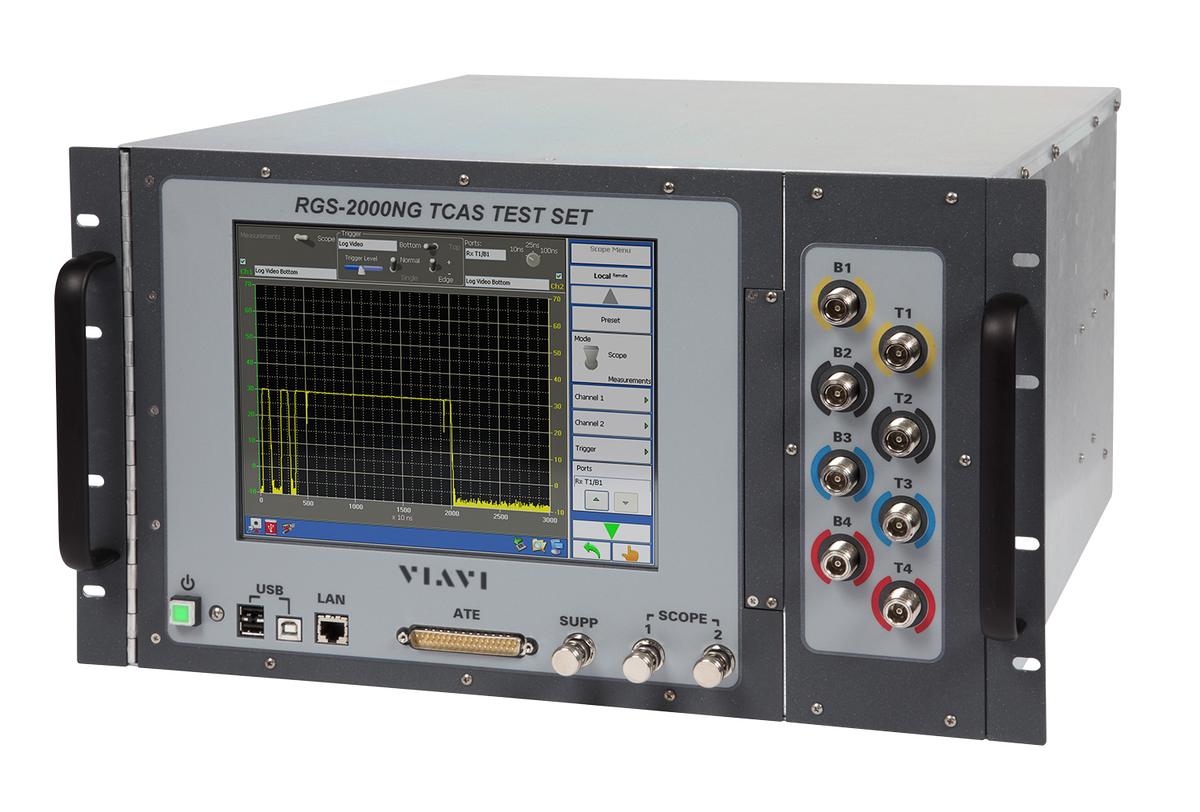

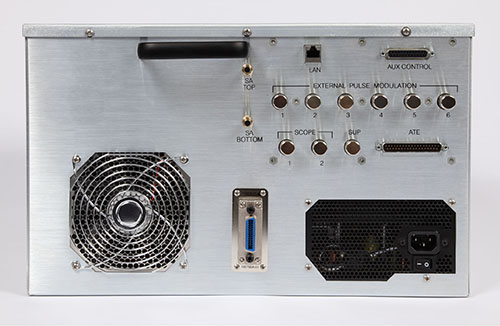

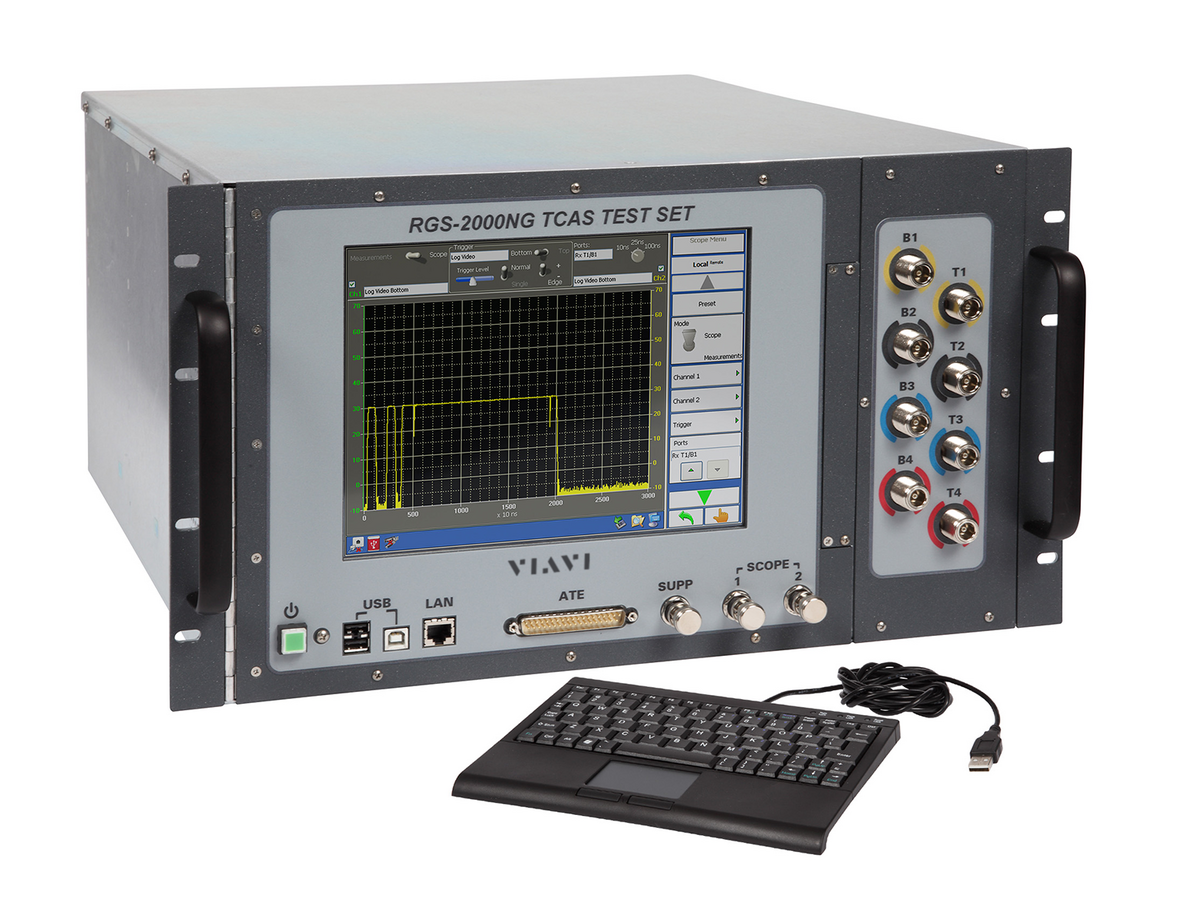

Тестер RGS-2000NG NextGen TCAS
Подробнее
Описание
Тест-решение премиум-класса для разработки, сертификации, проверки и ремонта систем TCAS и транспондеров
Создан для инженерной разработки, проверки конструкции, производства и тестирования при возврате в эксплуатацию систем TCAS
RGS-2000NG — тестер с РЧ генератором/приемником предназначен для тестирования TCAS (системы предупреждения о столкновении в воздухе) и обладает возможностями для тестирования транспондера LRU. RGS-2000NG был разработан с использованием современного интуитивно понятного программного обеспечения и является заменой RGS-2000 в процессах инженерной разработки, проверки конструкции, производства и тестирования при возврате в эксплуатацию.
- Возможность обновления «на местах» с добавлением новых функций, возможностей или изменений в соответствии с отраслевыми требованиями
- Генератор целей TCAS и ADS-B
- Имитация 32 динамических / 400 статических нарушителей
- Кодирование/декодирование сквиттера ADS-B
- Более широкая функциональность тестирования, чем у любого другого тестера на рынке, в одном устройстве
- Измерение импульса и частота Опция тестирования транспондеров для режимов А, С, S
- Опциональная имитация наборов команд для SDX-2000, ATC-1400A и S-1403DL
- Сенсорный ЖК-экран 10,4 дюйма для управления всеми функциями тестера оператором, а также дистанционное управление по GPIB или Ethernet
- Четыре порта для моделирования антенн
- Гибридное наблюдение
- Шесть независимых передатчиков и два приемника
- Разбор данных для анализа
Тестируемое оборудование:
- Компьютеры TCAS
- Приемники ADS-B
- Приемники ADS-B на наземных станциях
- Передатчики ADS-R и TIS-B на наземных станциях
- Транспондеры в режиме передатчиков S/ADS-B (с опцией транспондера)
Характеристики
Transmitter
| Frequency | |
| Range | 952 MHz to 1223 MHz |
| Resolution | 100 KHz |
| Accuracy | ±10 KHz |
| Phase Noise | >80 dBc/Hz @ 100 KHz |
| Power | |
| Range (TCAS) | -20 to -90 dBm [Low Power Mode] |
| +1 to -69 dBm [High Power Mode] | |
| Resolution | 1.0 dB |
| Accuracy | ±1 dB @ 1090 MHz |
| Range (Transponder) | -20 to -90 dBm |
| Resolution | 1.0 dB |
| Accuracy | ±1 dB @ 1030 MHz |
| Range (UAT) | +1 to -98 dBm |
| Resolution | 1.0 dB |
| Accuracy | ±1dB @ 978MHz |
| Range (Multi-Receiver) | -20 to -90 dBm [Low Power Mode] |
| +1 to -69 dBm [High Power Mode] | |
| Resolution | 1.0 dB |
| Accuracy | ±1 dB @ 1090 MHz |
| Range (DO-260B) | -20 to -90 dBm [Low Power Mode] |
| +1 to -69 dBm [High Power Mode] | |
| Resolution | 1.0 dB |
| Accuracy | ±0.5 dB at 1090MHz |
| Range (Transmission Block) | -20 to -90 dBm [Low Power Mode] |
| +1 to -69 dBm [High Power Mode] | |
| Resolution | 1.0 dB |
| Accuracy | ±1dB @ 1090MHz |
| Spectral Purity | |
| Harmonics | >50 dBc |
| Spurious | >55 dBc, 350 to 1800 MHz |
| Residual FM | 250 Hz Peak |
| Channels | |
| No. of Channels | 6 |
| Channels | |
| Power | ±20 dB |
| Resolution | 0.1 dB |
| Accuracy | ±1 dB |
| Timing | ±1 uS |
| Resolution | 25 nS |
| Accuracy | ±10 nS |
| Modulation | |
| Pulse On/Off Ratio | >80 dB |
| Pulse Position (high speed rise/fall time mode) | |
| ATCRBS Replies Default | 1.45 uS from previous pulse |
| Accuracy | ±10 nS |
| ATCRBS Replies Variation | F1: 0 to 100 nS in 25 nS steps |
| All other pulses: ±1000 nS | |
| Resolution | 25 nS |
| Accuracy | ±10 nS |
| Mode S Replies Default | P1:0uS, P2:1uS, P3:3.5uS, P4:4.5uS |
| Accuracy | ±10 nS |
| Mode S Replies Variation | P1:0to1000nS |
| P2/P3/P4: + 1000 nS | |
| Resolution | 25 nS |
| Accuracy | ±10 nS |
| Mode A Interrogation P1- P3 Default | 8.0 uS |
| Accuracy | ±10 nS |
| Mode C Interrogation P1- P3 Default | 21.0 uS |
| Accuracy | ±10 nS |
| ATCRBS Interrogation P1-P2 Default | 2.0 uS |
| Accuracy | ±10 nS |
| ATCRBS Interrogation P3-P4 Default | 2.0 uS |
| Accuracy | ±10 nS |
| ATCRBS Interrogation Variation | ±1.95 uS |
| Resolution | 25 nS |
| Accuracy | ±10 nS |
| Mode S Interrogation P1 to P2 Default | 2.0 uS |
| Accuracy | ±10 nS |
| Mode S Interrogation P1 to P2 Variation | ±1.0 uS |
| Resolution | 25 nS |
| Accuracy | ±10 nS |
| Mode S Interrogation P1 to P6 Default | 3.5 uS |
| Accuracy | ±10 nS |
| Mode S Interrogation P6 Variation | ±1.95 uS |
| Resolution | 25 nS |
| Accuracy | ±10 nS |
| Mode S Interrogation P2 to SPR Default | 2.75 uS |
| Accuracy | ±10 nS |
| Mode S Interrogation SPR Variation | ±1.0 uS |
| Resolution | 25 nS |
| Accuracy | ±10 nS |
| Mode S Interrogation P5 prior SPR Default | 400 nS |
| Accuracy | ±10 nS |
| Mode S Interrogation P5 Variation | ±1.95 uS |
| Resolution | 25 nS |
| Accuracy | ±10 nS |
| Interference Interrogation Signal #1 | -17.5 to 400 uS |
| Resolution | 25 nS |
| Accuracy | ±10 nS |
| Interference Interrogation Signal #2 | 0 to 400 uS |
| Resolution | 25 nS |
| Accuracy | ±10 nS |
| Double Interrogation | 0–400uS |
| Resolution | 25 nS |
| Accuracy | ±10 nS |
| Pulse Width (high speed rise/fall time mode) | |
| ATCRBS Replies Default | 0.45 uS |
| Accuracy | ±10 nS |
| ATCRBS Replies Variation | F1: -400 to ±950 nS |
| All other: ±400 nS | |
| Resolution | 25 nS |
| Accuracy | ±10 nS (minimum 100 nS pulse width) |
| Mode S Replies Preamble Default | 0.5 uS |
| Accuracy | ±10 nS |
| Mode S Replies Preamble Variation | ±400 nS |
| Resolution | 25 nS |
| Accuracy | ±10 nS |
| Mode S Reply Data Bits (Manchester) | 0.5 uS |
| Accuracy | ±10 nS |
| Mode S Reply Data Variation | ±100 nS |
| Resolution | 25 nS |
| Accuracy | ±10 nS |
| ATCRBS Interrogation P1/P2/P3 Default | 0.8 uS |
| Accuracy | ±10 nS |
| ATCRBS Interrogation P4 Short | 0.8 uS |
| Accuracy | ±10 nS |
| ATCRBS Interrogation P4 Long | 1.6 uS |
| Accuracy | ±10 nS |
| ATCRBS Interrogation P1/P2/P3/P4 Variation | 0 to 1.95 uS |
| Resolution | 25 nS |
| Accuracy | ±10 nS |
| Mode S Interrogation P1/P2 Default | 0.8 uS |
| Accuracy | ±10 nS |
| Mode S Interrogation P1/P2 Variation | 0 to 1.95 uS |
| Resolution | 25 nS |
| Accuracy | ±10 nS |
| Mode S Interrogation P6 Short Default | 16.25 uS |
| Accuracy | ±10 nS |
| Mode S Interrogation P6 Long Default | 30.25 uS |
| Accuracy | ±10 nS |
| Mode S Interrogation P6 Variation | P6 Overall: -0.5 to ±1.45 uS (offset range) |
| P6 End: 0 to 1.95 uS | |
| Resolution | 25 nS |
| Accuracy | ±10 nS |
| Mode S Interrogation P5 Default | 0.8 uS |
| Accuracy | ±10 nS |
| Interference Pulse Width | 0.2 to 32.0 uS |
| Resolution | 25 nS |
| Accuracy | ±10 nS |
| Pulse Rise/Fall Time | |
| TCAS | 75/75 nS |
| 100/200 nS | |
| 230/230 nS | |
| 600/600 nS | |
| <50 / <50 nS | |
| Accuracy | ±25 nS; <50 nS for <50 / <50 |
| Transponder | <50 / <50 nS |
| Accuracy | <50 nS |
| Pulse Amplitude | |
| ATCRBS Replies Variation | All pulses: 0 or -1 dB |
| Mode S Reply Variation | All preamble: 0 or -1 dB |
| Video Data Block Variation | +3 to -4 dB |
| Resolution | 1 dB |
| Accuracy | ±1 dB |
| ATCRBS Interrogation Variation | +9 to -19 dB |
| Resolution | 1 dB |
| Accuracy | ±1 dB |
| Interference | +9 to -19dB |
| Resolution | 1 dB |
| Accuracy | ±1 dB |
| Pulse Enable | |
| ATCRBS Replies | All pulses: on/off |
| Mode S Reply | All preamble: on/off |
| Block Transmissions | |
| TCAS | 1000 messages |
| XPDR | 2000 messages |
| No. of Blocks | 1 to 50,000 or indefinite |
| Interrogation Rate within Block | User defines spacing between interrogations |
| Period | 10 ms to 90 seconds |
| Resolution | 1 ms |
| Accuracy | ±1 ms |
| PRF | |
| ATCRBS Interrogations | 1 to 10,000 Hz |
| Resolution | 1 Hz |
| Accuracy | 0.1% of setting |
| Mode S Interrogations | 1 to 2500 Hz |
| Resolution | 1 Hz |
| Accuracy | 0.1% of setting |
| Double Interrogation | |
| Each message: | 1 to 2500 Hz PRF in sync or non-sync |
| Resolution | 1 Hz |
| Accuracy | 0.1% of setting |
| Interlace | 1 to 400Hz |
| Resolution | 1 Hz |
| Accuracy | 0.1% of setting |
| Interlace Ratio | |
| Ratio | 1:1 to 1:1000 |
| TCAS Bearing Simulation | |
| Bearing | 0 to 359 degrees |
| Resolution | 1 degree |
| Accuracy | Phase Bearing 4-Port Formula: ±2 degrees 4-Port Standard Deviation: <1 deg at any simulated bearing Port-to-Port: ±4 degrees max to min deviation between any two adjacent ports |
| Magnitude Bearing 4-Port Formula: ±2 degrees Power Table: ±0.556 dB (equivalent to ±2 degrees) | |
| OEM | Honeywell Phase |
| Collins Phase/Magnitude | |
| ACSS Magnitude | |
| Garmin Phase | |
| Avidyne Magnitude | |
| TCAS Range Simulation | |
| Range | Mode S: 0 to 160 nmi |
| Mode C: 0.5 to 160 nmi | |
| Resolution | 0.001 nmi |
| Accuracy | ±0.01 nmi from 500 ft. to 30 nmi |
| ±0.10 nmi from >30 nmi | |
| TCAS Velocity Simulation | |
| Velocity | ±2000 kts |
| Resolution | 1 kt |
| Accuracy | ±1 kt |
| TCAS Vertical Speed Simulation | |
| Vertical Speed | ±32608 ft/min |
| Resolution | 64 ft/min |
| Accuracy | ±64 ft/min |
| TCAS Altitude Simulation | |
| Altitude | -1000 to 126700 ft |
| Resolution | 25/100 ft up to 50175 ft 100 ft above 50175 ft |
| Accuracy | ±25 ft |
| Mode | Gilham/Binary |
Receiver
| VSWR | |
| < 1.4 (1030 MHz and 1090 MHz) | |
| Max Input Power | |
| +60 dBm | |
| Antenna Simulation | |
| OEM | Honeywell Phase |
| Collins Phase/Magnitude | |
| ACSS Magnitude | |
| Garmin Phase | |
| Avidyne Magnitude | |
| Antenna Resistors (Internal) | Honeywell Phase |
| Collins Phase/Magnitude | |
| ACSS Magnitude | |
| RGS-2000NG can handle Collins Magnitude DC voltages to antenna | |
| Arrangement | RGS-2000NG ports are arranged in the same manner as antenna. |
| RGS-2000NG B2 and B4 are swapped for RGS- 2000 B2 and B4 | |
| Cross-Coupling | Adjacent and Non-adjacent Ports: -15 to -19 dB |
| Receiver Decoding | |
| Messages | ATCRBS Interrogation and Replies Mode S Interrogations and Replies (T1 and B1 ports only) UAT Ground and Airborne Messages [UAT Option], (B1 port only) |
| Dynamic Range | |
| 1030/1090 MHz | +17 to +60 dBm |
| UAT | +30 to +57 dBm |
| Channels | |
| No. of Channels: | 2, Top/Bottom |
| Measurement | |
| Power | +17 to +60 dBm |
| Resolution | 0.1 dB |
| Accuracy | ±0.5 dB |
| TCAS Relative Phase | 0 to 359 degrees; any port reference to T1/B1 |
| Resolution | 1 degree |
| Accuracy | ±4 degree |
| Frequency Pulse Measurement Type | 1030 MHz (±3 MHz) |
| Resolution | 1 KHz |
| Accuracy | ±50 KHz |
| Frequency 1030 Measurement Type | 1030 MHz ±50 KHz |
| Resolution | 100 KHz |
| Accuracy | ±1 KHz |
| Pulse Spacing | |
| Resolution | 1 nS |
| Accuracy | ±10 nS |
| Pulse Spacing | |
| Resolution | 1 nS |
| Accuracy | ±10 nS |
| Pulse Rise/Fall Time | |
| Resolution | 1 nS |
| Accuracy | ±20 nS |
| ATCRBS Reply Delay | |
| Resolution | 25 nS |
| Accuracy | ±20 nS |
| Mode S Reply Delay | |
| Resolution | 25 nS |
| Accuracy | ±50 nS |
| Reply Jitter | |
| Resolution | 25 nS |
| Accuracy | ±20 nS |
Документы
Viavi RGS-2000NG Specification
226.8 Кб
Viavi RGS-2000NG Brochure
403.1 Кб
Описание
| Наименование | Описание |
| RGS-2000NG | TCAS Test Set |
| RGSNGOPT10 | Transponder Test Option |
| RGSNGOPT01 | Collins Compatibility Option |
| RGSNGOPT02 | Honeywell Compatibility Option |
| RGSNGOPT03 | Avidyne Compatibility Option |
| RGSNGOPT04 | ACSS Compatibility Option |
| RGSNGOPT05 | Selex Compatibility Option |
| RGSNGOPT06 | Garmin Compatibility Option |
| RGSNGOPT13 | UAT 978Mhz Option |
| RGSNGOPT14 | Multi-Receiver Option |
| RGSNGOPT15 | DO-260B MOPS Test Option |
|
Accessories |
Transit Case |
