IFF-45TS - комплекс для стендового испытания маяков-ответчиков, запросчиков и систем TACAN
Подробнее
Описание

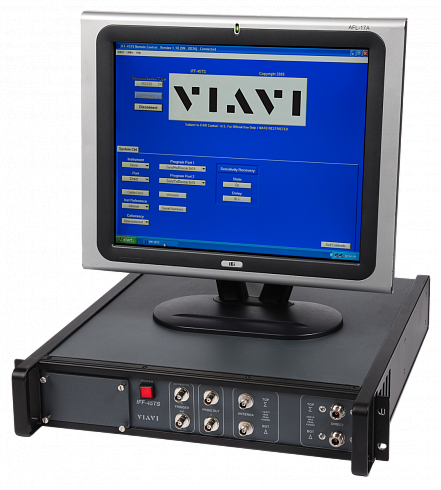

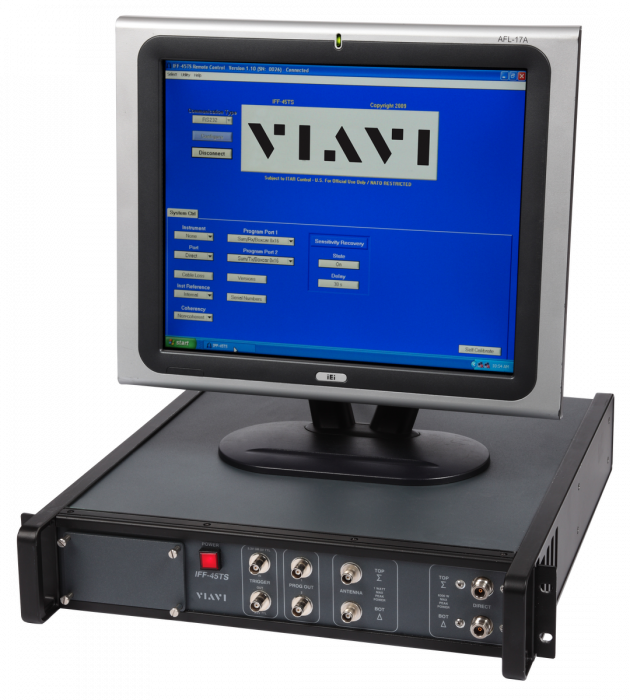

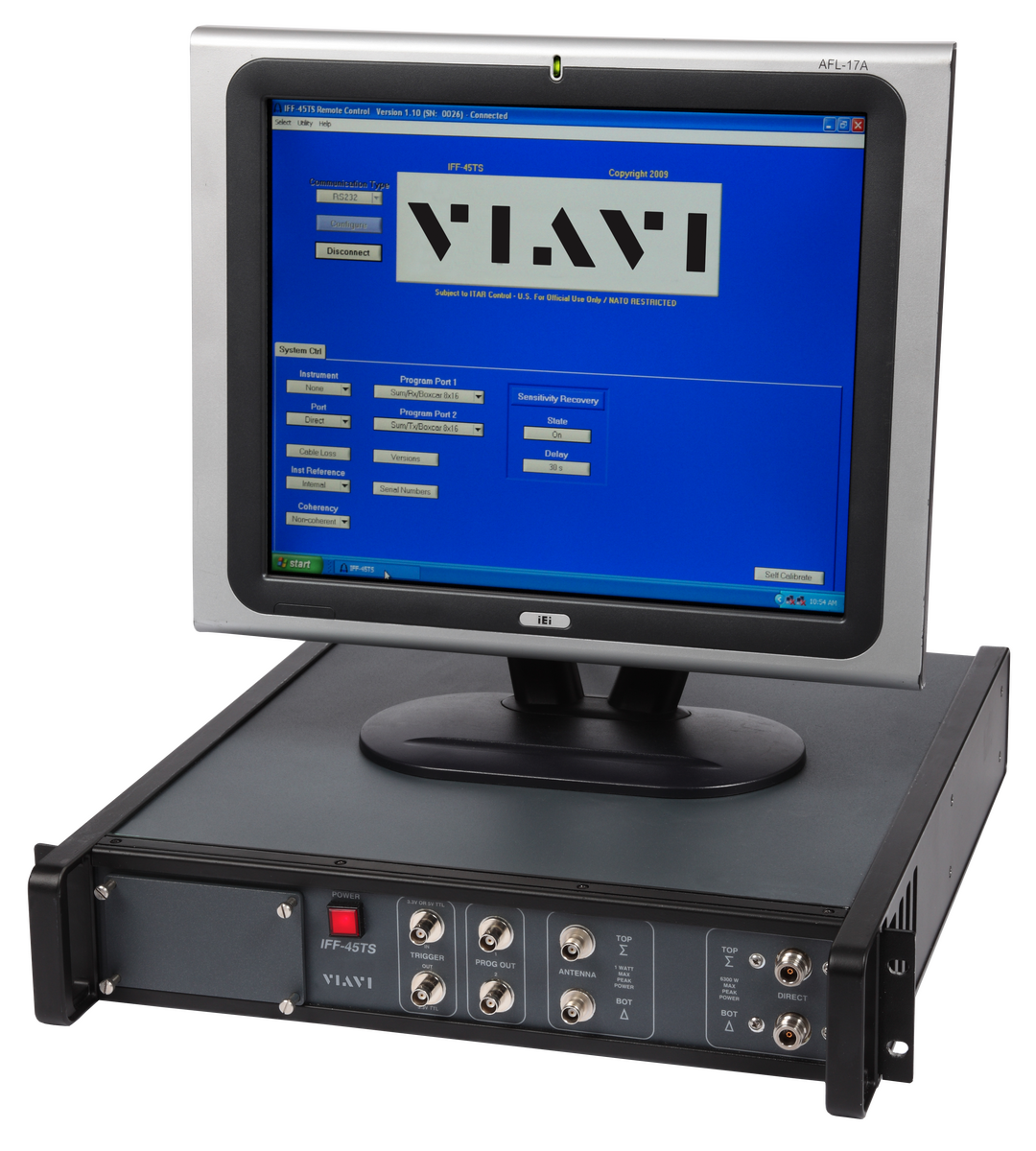

IFF-45TS - это имитатор радиосигнала, обеспечивающий поддержку маяков-ответчиков и запросчиков AIMS Mark XI XIIA. Устройство работает через дистанционное управление с компьютера или системы ATE и обеспечивает генерацию различных сигналов и измерение сигналов системы Mark XIIA, как в стендовых испытаниях, так и при тестировании «по воздуху».
Типовое применение:
- Поддержка технической разработки оборудования Mark XIIA (Режим 5)
- Изготовление ATE для оборудования Mark XIIA
- Поддержка сертификационных испытаний AIMS 03-1000A и DO-181C
- Тестирование оборудования Mark XIIA «по воздуху»
- Тестовый диапазон: до 3 км с соответствующими антеннами
- Тестирование линейно-изменяющихся характеристик установленного оборудования
Поддерживаемые интерфейсы IEEE-488, RS232 и Ethernet (VXI-11)
Характеристики
User Interface
| Interfaces Supported | IEEE-488, RS232 and Ethernet (VXI-11) |
| PC Windows based GUI provided |
Modes of Operation
| Transponder Testing: 1, 2, 3/A, C, S, 4, 5 | |
| Interrogator Testing: 1, 2, 3/A, C, S, 4, 5 | |
| DME/TACAN Testing: G/A, INV G/A, BG/A, BA/A, A/A, INV A/A | |
| ADS-B Transponder Out | |
| GCIB Decode |
Signal Generator
| Frequency Range | |
| 955 to 1223 MHz, 10 KHz resolution | |
| Output Amplitude Direct Port | |
| 0.0 dBm to -110.0 dBm (into 50 Ω) in 0.1 dB increments | |
| Accuracy@ 25 ̊ ± 5 ̊ C | |
| 0.0 dBm to -80.0 dbm | ±0.5 dB |
| < -80.0 dBm to -100 dBm | ± [0.5 dB + 0.05 dB per dB below -80 dBm] |
| < -100.0 dBm | ± [1.5 dB + 0.35 dB per dB below -100 dBm] |
| Accuracy over full temp | |
| 0.0 dBm to -80.0 dbm | ±1.0 dB |
| < -80.0 dBm to -100 dBm | ± [1.0 dB + 0.10 dB per dB below -80 dBm] |
| < -100.0 dBm | ±[3.0 dB + 0.70 dB per dB below -100 dBm] |
| Antenna Port | |
| +30.0 dBm to -60.0 dBm (into 50 Ω) in 0.1 dB increments | |
| Accuracy @ 25 ̊ ± 5 ̊ C | |
| Power ≥ -30.0 dBm | ±1.0 dB |
| Power < -30.0 dBm | ±[1.0 dB + 0.033 dB per dB below -30 dBm] |
| Accuracy over full temp | |
| Power ≥ -30.0 dBm | ±2.0 dB |
| Power < -30.0 dBm | ±[2.0 dB + 0.066 dB per dB below -30 dBm] |
| Pulse Formats | |
| Transponder/Interrogator | 1, 2, 3/A, C, S |
| Secure Modes | 4, 5 |
| Modes 3/A, C, S comply with RTCA/DO-181C; Modes 1, 2, 4, 5 comply with DOD AIMS 03-1000A. | |
| DME/TACAN | /A, A/A, INVERSE G/A, INVERSE A/A, BEACON G/A, BEACON A/A |
| Pulse Position Deviations | |
| XPDR | ±1 μs |
| INT Non-Mode 5 | ±1 μs |
| INT Mode5 | ±0.25 μs |
| Accuracy [XPDR/INT] | ±10 ns |
| TACAN | 12 ± 0.1 μs |
| Accuracy [TACAN] | ±100 ns |
| Pulse Width Deviations | |
| Transponder | Nominal ±0.6 μs (fixed in Mode S-SPR) |
| Accuracy | ±10 ns |
| Interrogator | Nominal ±0.5 μs |
| Accuracy | ±10 ns |
| TACAN | 3.5 μs to 9.0 μs |
| Accuracy | ±0.1 μs |
| Pulse Amplitude | |
| XPDR/INT | +5 to -15 dB |
| TACAN | ±5 to -15 dB |
| Interference Pulse Characteristics (1 or 2 pulses) | |
| Position | -1 μs to +400 relative to reference |
| Offset range | |
| XPDR | -44 μs to 400 μs |
| INT | -1 μs to 400 μs |
| Accuracy | ±10 ns |
| Interference Pulse Spacing (multiple pulse interference mode) | |
| Range | -1 μs to +400 relative to 1st pulse |
| Max 2nd pulse position | 400 μs - 1st pulse position |
| Accuracy | ±10 ns |
| Range Delay | |
| DME/TACAN | 1 to 400.00 nmi in 0.01 nm steps |
| Accuracy | 0.02 nm or 0.0003% of simulated range |
| INT | 0 to 400.00 nmi |
| Accuracy | ±0.01 nmi |
| Diversity | |
| Timing (either channel) | 0 to ±1 μs, ±10 ns accuracy |
| Echo | |
| DME/TACAN | |
| Amplitude Variation | |
| Accuracy | |
| Channel Signal Assignment | |
| Transponder Test | Top/Bottom |
| Interrogator Test | Sum/Difference |
| TACAN | Top/Bottom |
| Interrogation Generator | |
| Independent/Unique Interrogations 1-12 | |
| Fixed Mode | SIF Mode: 1-10000 PRF |
| Mode 5: 1-1200 PRF | |
| Mode S: 1-2500 PRF | |
| Mode 4: 1-3500 PRF (internal) 1-2500 PRF (external) | |
| Double/Supermode | |
| Spacing between interrogations (slaved delay) | 0-400 μs |
| Pair generation rate | 1-400 PRF |
| Supermode interrogations | 2 interrogations |
| Burst Mode | |
| Bursts/trigger | 1-1000 or infinite |
| Interrogations/burst | 1-2500 |
| Interrogation rate (within a burst) | 1-400 PRF |
| Spacing between burst sequences | 0.1-20 sec |
| Interlaced Mode | |
| Interlace ratio | 1:1 - 1:63 |
| Group rate | 1-400 PRF |
| Reply Generator | |
| Independent/Unique Replies | 1-12 |
| Data and Range | Individually configured |
| Selectable Modes | 1,2,3/A,C,S,4,5 |
| Selectable Efficiency | 1-100% |
| Spectral Purity Residual Level | |
| Harmonics | Direct: < 50 dBc |
| Antenna: < 40 dBc | |
| Spurious (> modulation BW) | < 60dBc, 350 - 1800 MHz |
| Phase Noise | < 80 dBc/Hz @ 100 kHz |
Signal Receiver Measurements
| Frequency Range | |
| 1020 to 1155 | |
| Input Amplitude | |
| Pulse Power Measurements | |
| 25 ±5 ̊ C | Direct +30 dBm to +66 dBm: +0.5 dB |
| Antenna -40 to +30 dBm: +1 dB | |
| Resolution: 0.01 dB | |
| -10 ̊ to 55 ̊ C | Direct +30 dBm to +66 dBm: +1 dB |
| Antenna -40 to +30 dBm: +2 dB | |
| Resolution: 0.01 dB | |
| Pulse to Pulse Spacing | |
| XPDR/INT | |
| Non-Mode 5 | ±0.3 μs |
| Mode 5 | ±0.0625 μs |
| Accuracy | ±10 ns |
| TACAN | ±0.5 μs |
| Accuracy | ±50 ns |
| Pulse Width | |
| XPDR/INT | ±0.200 μs |
| Accuracy | ±10 ns |
| TACAN | 2.5 to 4.5 μs |
| Accuracy | ±50 ns |
| Pulse Width | |
| Accuracy | ±50 ns |
| Reply Delay Jitter | |
| Accuracy | ±20 ns |
| Frequency | |
| Accuracy | ±50 KHz |
| % Reply | |
| Range | 0-100% for each interrogation type |
| Resolution | 0.0125% (for sample size = 8000) |
| Sample Size | 1 - 8000 interrogations |
Specific Application
| TACAN/DME | |
| Ident | |
| Variable | 10 sec to 60 sec |
| Alphanumeric Character | 1 to 8 [A to Z] |
| Bearing | |
| Range | 0° to 359.9° in 0.1° steps |
| Accuracy | ±0.05° |
| Rate | 0° to 39° sec in 0.01° steps |
| Velocity | |
| Range | 0 to 9999 Kts in 1 Kt steps |
| Accuracy | ±0.001% |
| Squitter | |
| Range | 10 to 8000 Hz |
| Accuracy | 10 Hz or 2%, whichever is greater |
| Distribution | Compliant with ARINC 568 @ 2700 Hz |
| Main Reference Burst | |
| Adjustable Burst (all modes) | +1, +2, -1 or -2 |
| Selectable | On/Off |
| X Channel | 12 pulse pairs |
| Y Channel | 13 single pulses |
| A/A (all channels) | 10 single pulses |
| Accuracy | ±100 ns |
| Auxiliary Reference Burst | |
| Adjustable Burst (all modes) | +1, +2, -1, or -2 |
| X Channel | 6 pulse pairs |
| Y Channel | 13 single pulses |
| Accuracy | ±100 ns |
| TACAN Modulation | |
| Range | 0% to 39% in 1 Hz steps (15 Hz and 135 Hz separately adjustable) |
| Accuracy | ±1% |
| Distortion | < 5% of either tone |
| A/A Interrogation Rate | 0 to 3999 Hz in 1 Hz steps |
| Reply Efficiency | 0 to 100% in 1% steps |
| Crypto Appliqué Compatibility | |
| KIV-77 - AIMS Type B, Mode 4/5 | |
| KIV-78 - AIMS Type A, Mode 4/5 | |
| KIV-6 - Mode 4 | |
| KIT-1(A/C) / KIR-1(A/C) cables (external power cable) | |
| Built-in Crypto Appliqué Function | |
| Mode 4 Internal Crypto Simulator (standard) Word A/B, C1 - C16 | |
| Mode 5 Internal Crypto Simulator (standard with options 1 and 3) As defined by the U.S. Navy Mode 5 Program Office | |
Interface Signals
| Analog Signal Ports (programmable output) | |
| 2 Ports | |
| Programmable Sources | Various |
| Level | ±1 V into 50 Ω |
| Trigger Out (front panel) | |
| Programmable Source | TX timing ref, RX detection |
| Level | 3.3 V logic |
| Trigger In (front panel) | |
| Functions | Interrogation Trigger Reply Trigger |
| Level | 3.3 V logic |
| Suppression Out | |
| Amplitude into 2 KΩ | 12 V to 80 V |
| Variable Pulse Width | 3.3 V logic |
| Suppression In | |
| Amplitude | 10Vto80V |
| Impedance | 2.2 KΩ |
| Action | Inhibits response to incoming signal |
Документы
Viavi IFF-45TS Specification
238.8 Кб
Viavi IFF-45TS Brochure
188.2 Кб
Описание
| Наименование | Описание |
| IFF45TS | IFF XPDR Modes 1,2,3/A,C,4&S Mode 5 |
| IFF45TS-A | IFF XPDR Modes 1,2,3/A,C,4&S |
| LMCO IFF-45TS | Kit, LMCO IFF-45TS Configuration |
| 45TSOPT1 | IFF XPDR Mode 5 Option |
| 45TSOPT2 | IFF INTER Modes 1,2,3/A,C,4&S Option |
| 45TSOPT3 | IFF INTER Mode 5 Option |
| 45TSOPT4 | DME/TACAN Option |
| 45TSOPT5 | ADS-B Out Option |

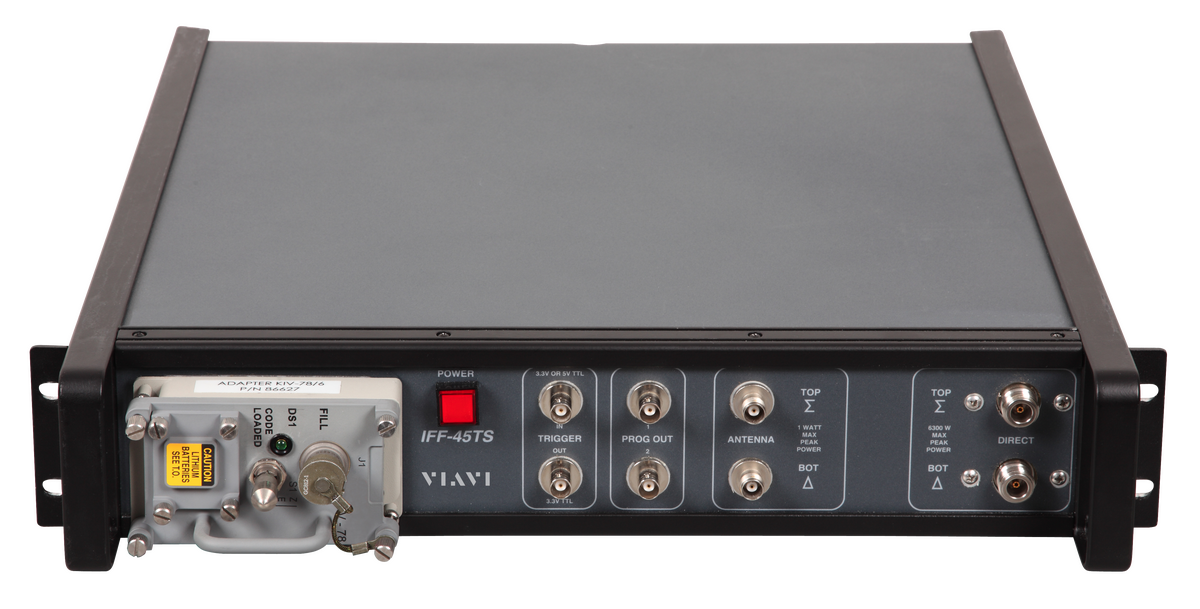

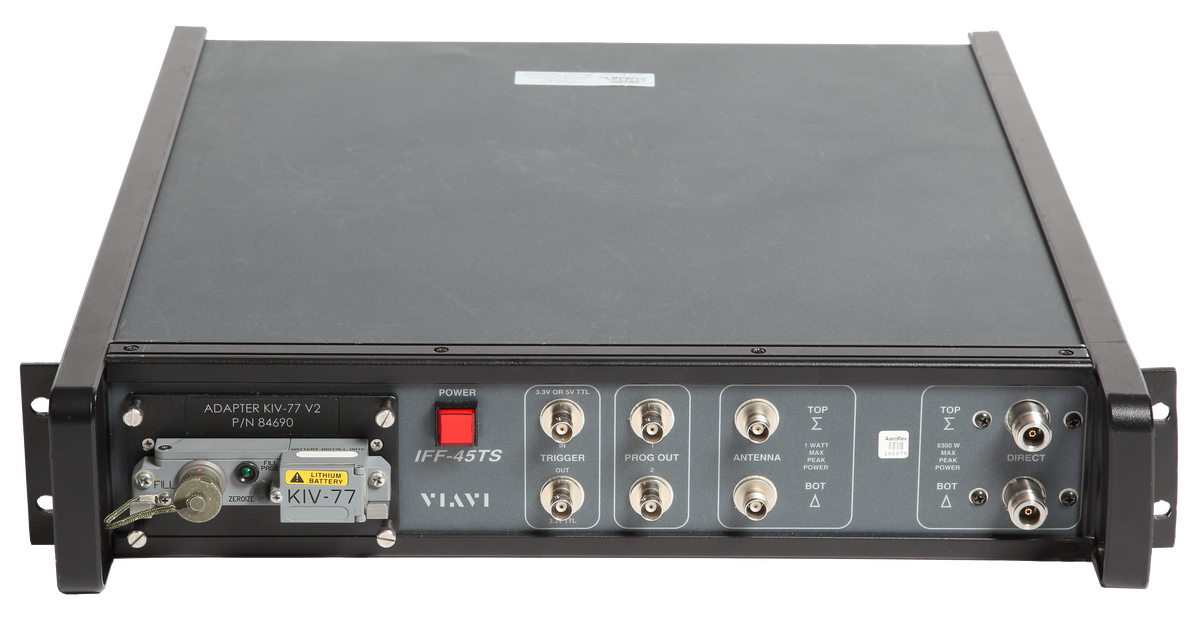

| 45TSOPT6 | KIV 77 / SIT-2010 Adapter (Type B) |
| 45TSOPT8 | KIT/KIR Adapter |
| 45TSOPT9 | KIV 78/KIV-6/QRTK-6 Adapter (Type A) |
| 45TSOPT10 | ADS-B Integrity Test Option |
| Accessories | Controller, Touchscreen Monitor w/Mode 5 GUI |
| Accessories | Controller, Touchscreen Monitor Sanitized w/Mode 5 GUI |
| Accessories | Controller, Touchscreen Monitor w/Mode 4 GUI |
| Accessories | Kit, Laptop with IFF45TS Mode 4 GUI |
| Accessories | Kit, Laptop with IFF45TS Mode 5 GUI |
| Accessories | Transit Case, IFF45TS |
| Accessories | Antenna w/GPS |
