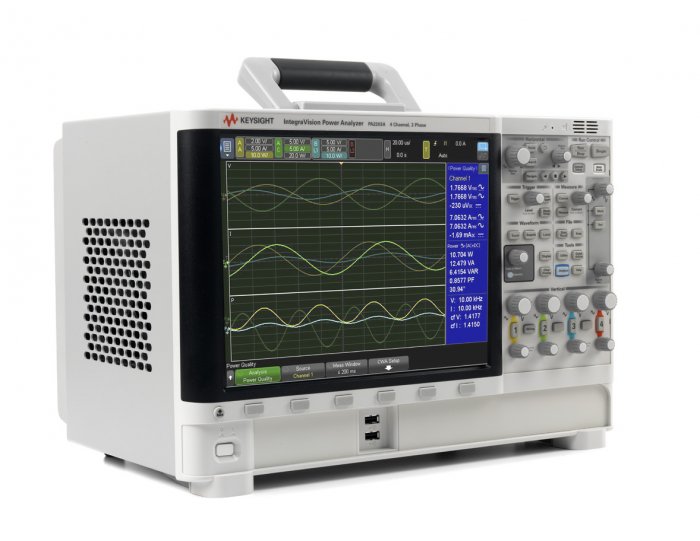

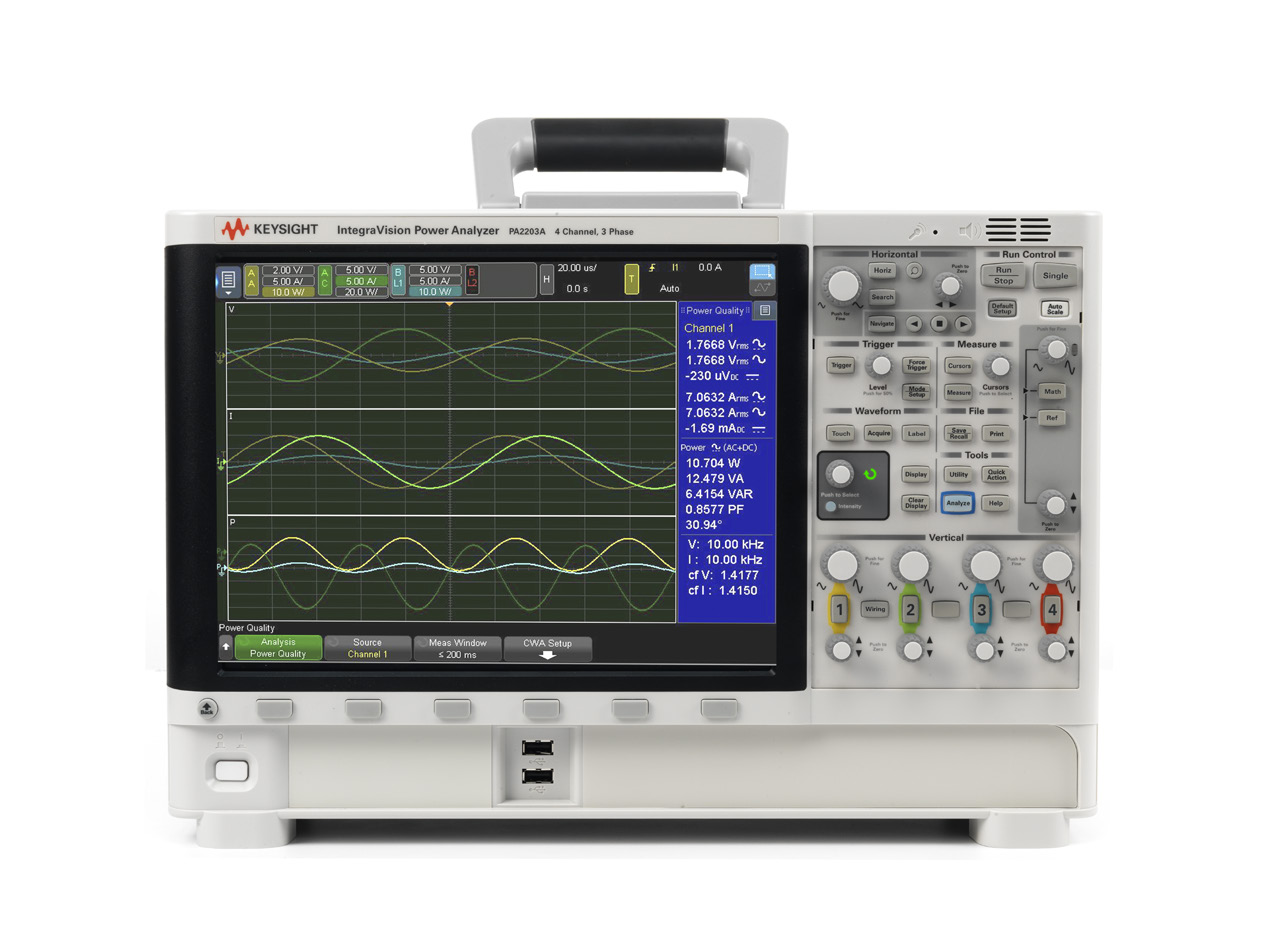

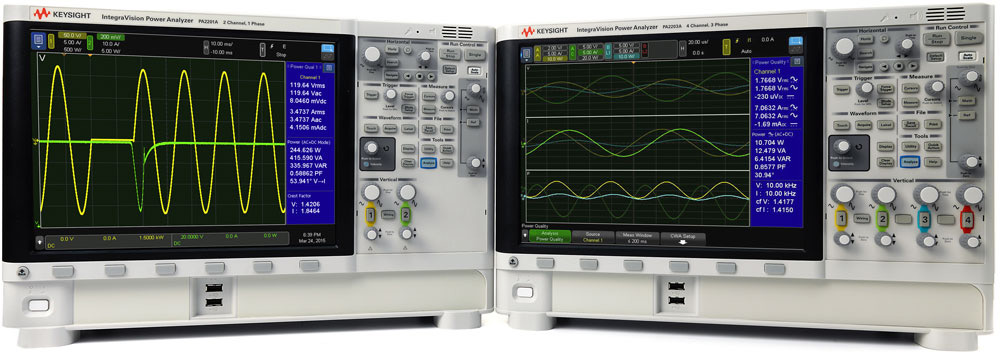

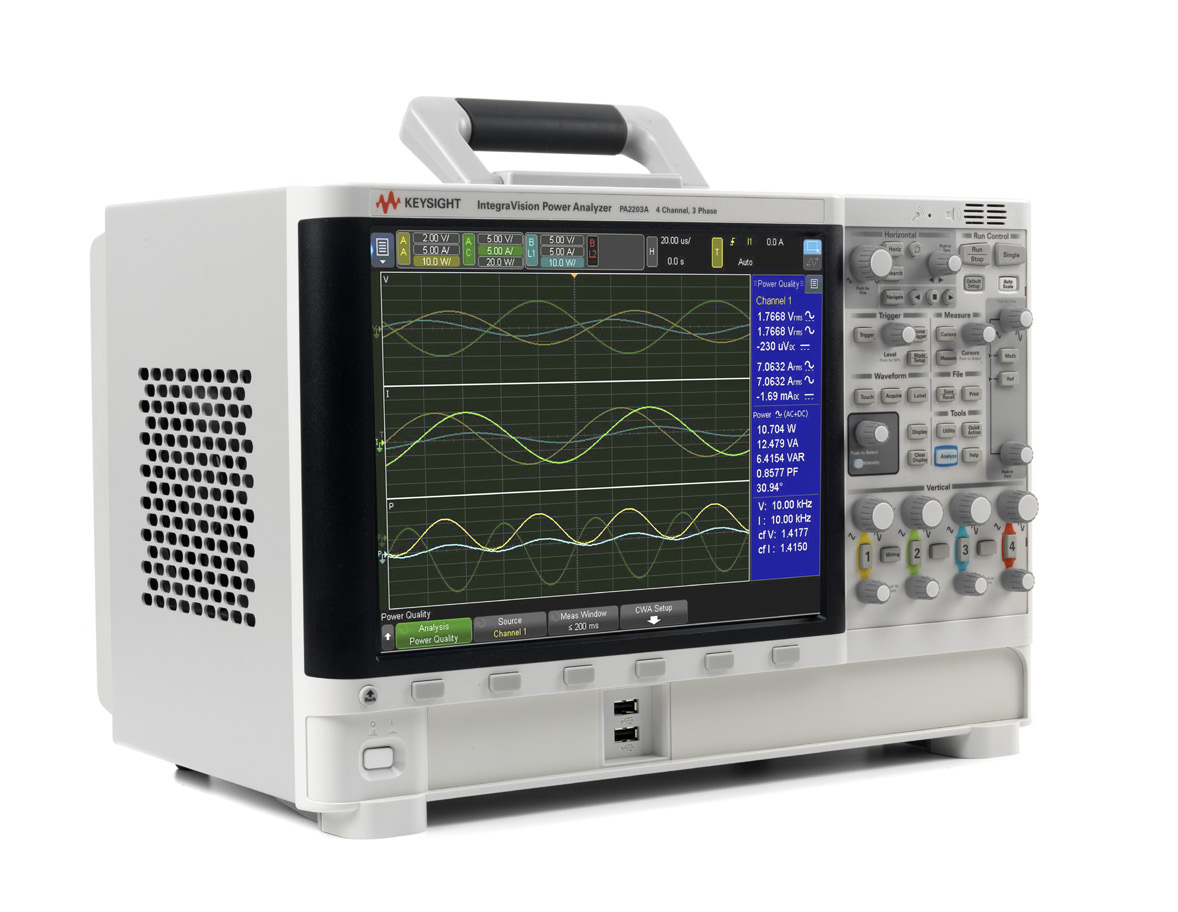

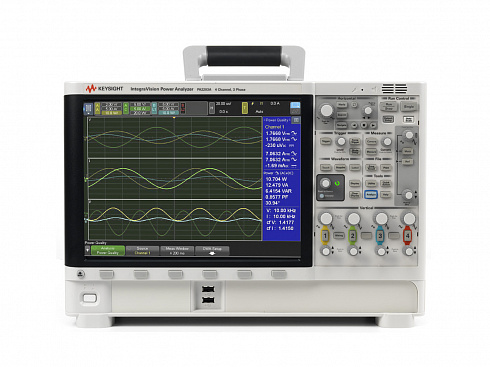

Анализаторы электрической мощности переменного тока Keysight IntegraVision серии PA2200: PA2201A и PA2203A
Подробнее
Описание
Анализатор мощности IntegraVision компании Keysight естественным образом объединяет в себе функции точного измерения мощности и осциллографической визуализации сигналов при помощи сенсорного интерфейса. Используя один прибор, вы получите динамические отображения сигналов, которые требуется увидеть, сможете выполнить необходимые измерения, а также проверить эксплуатационные характеристики разрабатываемых устройств.
Оптимизация измерений мощности благодаря динамичному представлению сигналов на сенсорном экране
- Измерение напряжения, силы тока и мощности по 4 каналам: постоянный ток, однофазный и трехфазный переменный ток
- Высокая точность измерений мощности: погрешность 0,05% на частоте 50/60 Гц
- Прямое измерение силы тока: встроенные токовые шунты до 50 А или внешние пробники или измерительные преобразователи
- Возможность выполнения множества сценариев благодаря наличию гальванической развязки входов (изолированным входам)
Характеристики
| Basic accuracy (50/60 Hz) | 0.05% of reading | ||
| Best power accuracy (50/60 Hz) | 0.1% of reading | ||
| Power Channels (Voltage and Current) | PA2201A: 2 Channels, | ||
| PA2203A: 4 Channels | |||
| Voltage Measurement Bandwidth (-3 dB) | 2.5 MHz (-3 dB) | ||
| Current Measurement Bandwidth (2 A or 50 A Input) | 100 kHz (-3 dB) | ||
| Current Measurement Bandwidth (External Input) | 2.5 MHz (-3 dB) | ||
| Maximum Voltage | 1000 Vrms (2000 V peak) | ||
| Maximum Current | Direct input: | 2 Arms (6 A peak) or 50 Arms (100 A peak) | |
| External transducer: | 10 Vrms (30 V peak) | ||
| Record Size | Maximum 1.5 M points on each waveform simultaneously | ||
| Digitizing Speed | Maximum 5 M samples/second at 16 bits on each waveform simultaneously | ||
| Display size and type | 12.1- inch capacitive multi-touch/gesture enabled display | ||

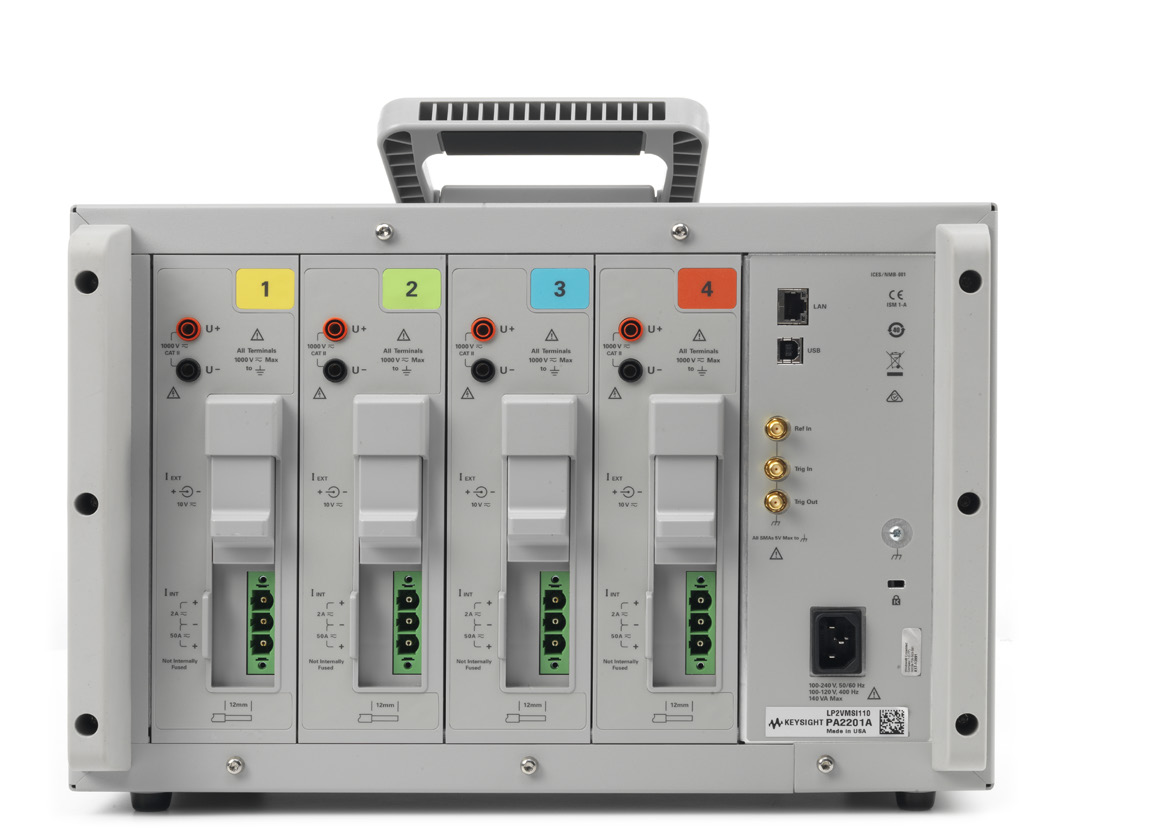

| Power Channels (Voltage and Current) | |||
| Voltage | Connector | Safety Banana Plug | |
| Maximum Voltage | 1000 Vrms, 2000 Vpeak | ||
| Input Impedance | 2 M Ω || 12.5 pF | ||
| Ranges | 5 V, 10 V, 20 V, 50 V, 100 V, 200 V, 500 V, 1000 V | ||
| Current | Directly Connected | Connector | Pluggable Terminal Block, Phoenix Contact PN: 1967469 |
| Maximum Current | 2 Arms, 6 A peak or 50 Arms, 100 A peak | ||
| Input Impedance | 2 A input: 60 mΩ + 0.10 μH | ||
| 50 A input: 6 mΩ + 0.06 μH | |||
| Ranges | 2 A input: 10 mA, 20 mA, 50 mA, 100 mA, 200 mA, 500 mA, 1A, 2A | ||
| 50 A input: 200 mA, 500 mA, 1 A, 2 A, 5 A, 10 A, 20 A, 50 A | |||
| External Transducer | Connector | ||
| Maximum Input Voltage | 10 Vrms, 30 V peak | ||
| Input Impedance | 100 k Ω || 100 pF | ||
| Ranges | 50 mV, 100 mV, 200 mV, 500 mV, 1 V, 2 V, 5 V, 10 V | ||
| Crest Factor |
3 at full-scale (Unless in conflict with maximum input ratings) Maximum Crest Factor of 30 at 10% of full scale |
||
| Current Input Protection | Internal current shunt measurement paths are not fused. Current limit protection (fuse or breaker) and appropriate wire sizing should be provided by the user. Currents in excess of 140% of the rated rms currents may cause permanent damage to the current measurement shunts. An internal protection mechanism is provided for the 2A shunt to avoid damage due to mis-wiring, but it should not be relied upon in situations where higher than 2 Arms currents are xpected. | ||
| Isolation | Voltage and current terminals are isolated from earth ground to 1000 V CAT II rating. Voltage is isolated from current with 1000 V CAT II rating | ||
| Measurement Capability | |||
| Basic | Voltage, Current, Power, Math | Peak to Peak, Minimum, Maximum, Amplitude, Top, Base, Overshoot, Preshoot, Average - N Cycles, Average - Full Screen, DC - N Cycles, DC - Full Screen, AC - N Cycles, ACrms - Full Screen (Std. Deviation), DC | |
| Time | Period, Frequency, +Duty Cycle, -Duty Cycle, Rise Time, Fall Time, Delay, Phase, X at min Y, X at max Y, Area - N Cycles, Area - Full Screen | ||
| Math | 4 waveforms: Addition, Subtraction, Multiplication, Derivative, Integral, FFT, Mx+B, x2, Square Root | ||
| Reference | 4 waveforms | ||
| Triggering | Auto, Wait for Trigger, Force Trigger, Source (V, I, P, External, Line), Edge (Rising, Falling, Either), Noise Reject | ||
| AutoScale | Yes | ||
| Cursors | 2X, 2Y, tracking or manual | ||
| File Storage | Save, Recall, Move, Print | ||
| Continuous Whole-Cycle | Voltage | DC, AC , AC with DC , Rectified Mean, Frequency, Maximum, Minimum, Crest Factor | |
| Analysis (CWA) | Current | DC, AC , AC with DC , Rectified Mean, Frequency, Maximum, Minimum, Crest Factor | |
| Power | Real Power AC, Real Power AC+DC, Real Power DC, Apparent Power AC, Apparent Power AC+DC, Reactive Power AC, Reactive Power AC+DC, Power Factor AC, Power Factor AC + DC, Power Angle AC, Power Angle AC+DC | ||
| Harmonics | Type | Voltage or Current | |
| Maximum frequency of any order | <30 kHz for any order | ||
|
Frequency content between 30 kHz and 2.5 MHz can be displayed using the internal Math FFT |
|||
| Maximum harmonic order | 250 orders (attainable below fundamental frequency of 120 Hz) | ||
| Measurement Characteristics | |||
| THD | -75 dBc at full scale for all inputs (<10 kHz) | ||
|
dV/dt Common Mode relative to earth without resetting instrument |
>25 kV/ms | ||
| Trigger Jitter | ±100 ns Input and Output | ||
| Noise Floor | 1% of range. On directly connected current inputs, add 5 mA (2 A connection) and 50 mA (50 A connection). | ||
| Voltage measurement capacitance to earth: | <130 pF | ||
| Current measurement capacitance to ground: | <130 pF | ||
| Display Characteristics | |||
| Display | 12.1-inch capacitive multi-touch/gesture enabled | ||
| Resolution | 800 (H) x 600 (V) pixel format (screen area) | ||
| Intensity gradation | 256 intensity levels | ||
| Display format | Configurable | ||
| Connectivity | |||
| USB 2.0 hi-speed host port | Two USB 2.0 hi-speed host ports on front panel for memory devices and peripherals (e.g. keyboard, mouse, printer) | ||
| USB 2.0 hi-speed device port | One USB 2.0 hi-speed device port on rear panel. USB Test & Measurement Class (USBTMC) compatible. | ||
| LAN port | 10/100/1000 Base-T port on rear panel | ||
| Web remote control | VNC Web interface (via major Web browsers) | ||
| 10 MHz Reference Input | Earth referenced SMA connector on rear panel. 0 to 3.3 V logic level (5 V Max.) | ||
| Trigger In | Earth referenced SMA connector on rear panel. 0 to 3.3 V logic level (5 V Max.) | ||
| Trigger Out | Earth referenced SMA connector on rear panel. 0 to 3.3 V logic level, 50 Ω output impedance. | ||
| General environmental characteristics | |||
| Power line consumption | Maximum 180 VA | ||
| Power voltage range | 100-240 V, 50/60 Hz ±10%; 100-120 V, 50/60/400 Hz; auto-ranging | ||
| Temperature | Operating | 0 to +40 °C | |
| Non-operating | -40 to +70 °C | ||
| Humidity | Operating | 80% RH (non-condensing) at 40 °C | |
| Altitude | Operating | Up to 3,000 m (15,000 ft) | |
| Non-operating | Up to 15,300 m (50,000 ft) | ||
| Acoustic power | Typical < 40 dBa, worst case noise <56 dBa | ||
| Warm-up Time | 60 minutes | ||
| Electromagnetic compatibility | Compliant with EMC Directive (2004/108/EC), | ||
| IEC 61326-1:2012/EN 61326-1:2013 Group 1 Class A | |||
| Canada: ICES-001:2004 | |||
| Australia/New Zealand: AS/NZS | |||
| South Korea KC mark | |||
| Safety | UL 61010-1 3rd edition, CAN/CSA 22.2 No.61010-1-12, IEC 61010-1:2010 3 rd edition | ||
| IEC 61010-2-030: 2010, CAT II | |||
| Vibration | Based on IEC 60068 | ||
| Shock | Based on IEC 60068 | ||
| Dimensions | 426 mm W x 308 mm H x 272.8 mm D (16.8 in W x 12.1 in H x 10.7 in D) | ||
| Weight | PA2201A: Net: 11.4 kg (25.2 lbs), Shipping: 12.8 kg (28.3 lbs) | ||
| PA2203A: Net: 12.3 kg (27.2 lbs), Shipping: 13.7 kg (30.3 lbs) | |||
Документы
Описание
| Опции | Описание |
| PA22KIT1 | Набор щупов напряжения для одного канала |
| PA22KIT2 | Изолированный переходник BNC на 4мм Banana Plug |
| PA22KIT3 | Изолированный переходник BNC на BNC |
| PA22RAC1 | Набор для монтажа в стойку |
Модели
| Модели | Описание |
| PA2201A | Анализатор мощности IntegraVision, 2 канала, 1-фазный переменный ток, погрешность 0,05% |
| PA2203A | Анализатор мощности IntegraVision, 4 канала, 3-фазный переменный ток, погрешность 0,05% |
