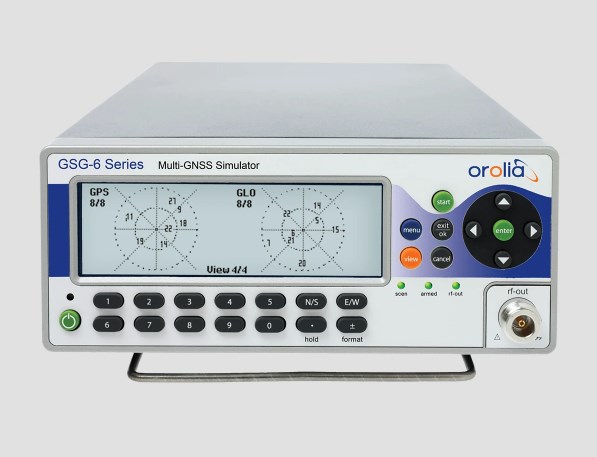

Orolia GSG-6

Симуляторы GPS и ГЛОНАСС-сигналов предназначены для тестирования приемников без ограничений условиями окружающей среды.

Симуляторы генерируют сигналы, получаемые приемником, и моделируют для него практически любые условия окружающей среды с точной повторяемостью. Линейка симуляторов GPS-сигналов Pendulum (Spectracom) экономит ваше время и деньги, позволяя проводить испытания в заданных воспроизводимых условиях.

Модель GSG идеальна для производственных испытаний, она симулирует сигнал одного спутника и позволяет с высокой повторяемостью просто и быстро проверить обнаружение сигнала и качество сборки.

Многоканальные сигналов и созвездий GSG позволяют испытывать системы позиционирования и навигации, симулируя сигнал от нескольких спутников, а также работу на движущемся по земле, воздуху или морю объекте.

Симуляторы Pendulum позволяют как выбирать готовый сценарий испытания, так и создавать и редактировать свои собственные с помощью ПО GSG Studio View.

Multi-channel, Multi-Frequency GPS/GNSS RF Generator

The GSG-6 Series family offers multiple frequency band operation, multiple GNSS constellation simulation, and expansion to many more channels. Incorporating all of the features of the popular 5 Series family, the 6 Series line expands your capability to simulate all the new, emerging GNSS satellite signals. With a base of 32 channels, upgradable to 48 or 64, it provides navigational fix and position testing, for engineering and development testing. The 6 Series simulator protects your investment by being upgradeable in the future to more frequency bands and channels (plug-in hardware upgrade) and more signal formats (firmware upgrade).

All the features of the GSG-5 series and more

The GSG-6 series offers more channels and GNSS signals on multiple simultaneous frequencies. For example, the GSG-6 supports testing dual frequency (L1/L2) receivers and military secure SAASM modules with pseudo P(Y) code.

Currently the GSG-6 series also supports GPS signals L2C, L2P and L5; GLONASS L2; Galileo E5a, E5b, and E6; BeiDou B2I, B2a and B3; NavIC L5; QZSS L2C, and L5.

An ideal solution for testing GPS time transfer

Besides the variety of built-in navigation/positioning tests, the GSG-6 is also suited for testing the accuracy of timing receivers. All GSG models are equipped with an ultra-high-stability OCXO timebase for precision timing of the satellite data, or use external synchronization from a 10 MHz reference from e.g. a Cesium or Rubidium clock. A built-in 1-pps output, synchronized to the generated satellite data, allows comparison with the 1-pps signal from the timing receiver under test. And the OPT-TIM option provides a ten times improvement in timing calibration accuracy.

There are 3 hardware configurations of the GSG-6 Series

Each configuration adds 16 channels and another frequency that can be simultaneously simulated. You can upgrade models by returning the unit to the factory.

• GSG-62: 32 channels and 2 simultaneous frequencies
• GSG-63: 48 channels and 3 simultaneous frequencies
• GSG-64: 64 channels and 4 simultaneous frequencies

Notes:

• GPS and L1 is included and the second frequency and other constellations are ordered from the list of available options.
• You can order more frequencies than the unit is capable of generating simultaneously in the case of testing L1+L2 and then later testing L1+L5.
• You do not need to order as many frequencies as the unit is capable of generating in the case of ordering the hardware to generate multiple frequencies, and then ordering frequency options later as a firmware upgrade without the need of returning the unit to the factory.
