Снят с производства

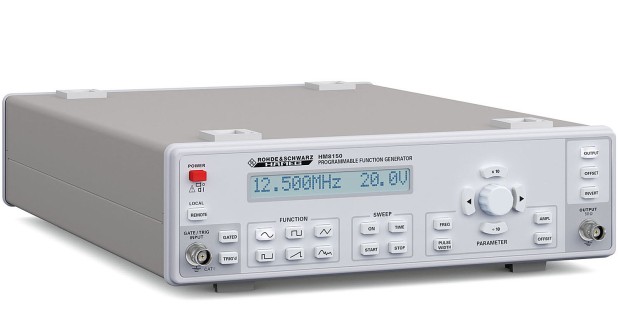

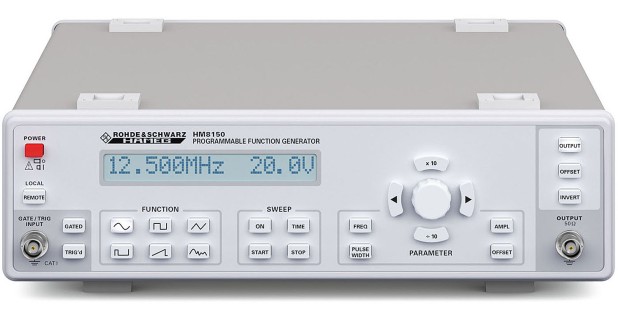

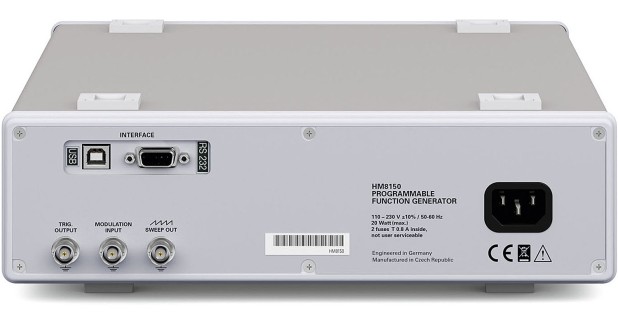

Генератор функций/произвольных сигналов Rohde&Schwarz HM8150 до 12,5 МГц
Подробнее
Описание
Rohde&Schwarz HM8150 генератор произвольных сигналов – это прибор для генерирования сигналов произвольной формы и диапазоном частот от 10 мГц до 12,5 МГц.
- Диапазон частот: 10 мГц - 12.5 МГц
- Выходная амплитуда: 10 мВпп - 10 Впп (на нагрузке 50 Ом)
- Формы сигналов: синус, меандр, треугольник, импульс, пила, произвольная
- Время нарастания/спада: < 10 нс
- Диапазон длительности импульса: 100 нс - 80 с
- Генератор произвольной формы: 40 МВыб/с
- Пачка, стробирование, внешний запуск, свип
- Бесплатное ПО для создания сигналов произвольной формы
- Внешняя АМ (полоса 20 кГц)
- Интуитивный интерфейс управления – быстрая смена настроек сигналов
- Гальванически изолированные USB/RS-232 интерфейсы, опция IEEE-488 (GPIB)
Характеристики
| 12.5 MHz Arbitrary Function Generator R&S®HM8150 All data valid at 23 °C after 30 minutes warm-up. | |
| Frequency | |
| Range | 10 mHz to 12.5 MHz |
| Resolution | 5 digit, max. 10 mHz |
| Accuracy | ± (1 digit + 5 mHz) |
| Temperature coefficient | 0.5 ppm/°C |
| Aging | 2 ppm/year |
| Waveforms Sine wave | |
| Frequency range | 10 mHz to 12.5 MHz |
| Amplitude | 20 mV (Vpp) to 20 V (Vpp) (open circuit) |
| Harmonic distortion at 1 V (Vpp) | |
| f < 500 kHz | –65 dBc |
| 500 kHz ≤ f < 5 MHz | –50 dBc |
| 5 MHz ≤ f ≤ 12.5 MHz | –40 dBc |
| Total harmonic distortion at 1 V (Vpp) | |
| f < 100 kHz | typ. 0.05 % |
| Spurious (non-harmonic) at 1 V (Vpp) | |
| f < 500 kHz | –65 dBc |
| 500 kHz ≤ f ≤ 12.5MHz | –65 dBc + 6 dBc/octave |
| Square wave | |
| Frequency range | 10 mHz to 12.5 MHz |
| Amplitude | 20 mV (Vpp) to 20 V (Vpp) (open circuit) |
| Rise/fall time | < 10 ns |
| Overshoot | < 5 % (Uout ≤ 200 mV) |
| Symmetry | 50 % ± (5 % +10 ns) |
| Pulse | |
| Frequency range | 10 mHz to 5 MHz |
| Amplitude | 10 mV (Vpp) to +10 V (Vpp) or –10 mV (Vpp) to –10 V (Vpp) |
| Rise/fall time | < 10 ns |
| Pulse width | 100 ns to 80 s |
| Duty cycle | max. 90 % |
| Sawtooth | |
| Frequency range | 10 mHz to 25 kHz |
| Amplitude | 20 mV (Vpp) to 20 V (Vpp) (open circuit) |
| Linearity | better than 1 % |
| Triangle | |
| Frequency range | 10 mHz to 250 kHz |
| Amplitude | 20 mV (Vpp) to 20 V (Vpp) (open circuit) |
| Linearity | better than 1 % |
| Arbitrary generator | |
| Frequency range | 10 mHz to 250 kHz |
| Amplitude | 20 mV (Vpp) to 20 V (Vpp) (open circuit) |
| Output rate | 40 MSa/s |
| Resolution | X 1.024 (10 Bit), Y 1.024 (10 Bit) or X 4.096 (12 Bit), Y 4.096 (12 Bit) |
| Inputs | |
| Gate/Trigger | BNC connector |
| Impedance | 5 kΩ II 100 pF |
| Max. input voltage | ±30 V |
| Modulation input | BNC connector |
| Impedance | 10 kΩ |
| Max. input voltage | ±30 V |
| Outputs | |
| Signal output | BNC connector, short circuit proof, ext. voltage up to ±15 V |
| Impedance | 50 Ω |
| Output voltage | |
| Range 1 | 2.1 V (Vpp) to 20 V (Vpp) (open circuit) |
| Range 2 | 0.21 V (Vpp) to 2,0 V (Vpp) (open circuit) |
| Range 3 | 20 mV (Vpp) to 200 mV (Vpp) (open circuit) |
| Resolution | |
| Range 1 | 100 mV |
| Range 2 | 10 mV |
| Range 3 | 1 mV |
| Setting accuracy (1 kHz) | |
| Range 1 | ±2 % |
| Range 2 | ±3 % |
| Range 3 | ±4 % |
| 3 % additional for pulse and square wave | |
| Frequency response | |
| < 100 kHz | ±0.2 dB |
| 0.1 to 12.5 MHz | ±0.5 dB |
| Offset error | |
| Range 3 | ±50 mV |
| Display | 2½ digits (LCD) |
| Trigger output | BNC connector |
| Level | 5 V/TTL |
| Impedance | 50 Ω |
| Sawtooth output | BNC connector |
| Output voltage | 0 to 5 V, synchronous to sweep |
| Impedance | 1 kΩ |
| DC-Offset | |
| Output voltage | |
| Range 1 | –7.5 V to +7.5 V (open circuit) |
| Range 2 | –0.75 V to +0.75 V (open circuit) |
| Range 3 | –75 mV to +75 mV (open circuit) |
| Vac range + 2 × Voffset range ≤ Vrange max | |
| Sweep (internal) | |
| Setting of start and stop frequencies | |
| Internal sweep | all waveforms |
| Sweep time | linear, 20 ms to 100 s continuous or triggered (ext. signal, interface) |
| Amplitude modulation | |
| Modulation via external signal | |
| Modulations depth | 0 to 100 % |
| Bandwidth | DC to 20 kHz (–3 dB) |
| Gate (asynchronuous) | |
| Modulation on/off via external TTL signal | |
| Delay time | < 150 ns |
| Input singal | TTL |
| Trigger function (synchronuous) | |
| Burst mode via ext. trigger input or interface | |
| Frequency range | < 500 kHz |
| Miscellaneous | |
| Interface | dual-interface USB/RS-232 (HO820), optional HO880 IEEE-488 (GPIB) |
| Display | 16 characters, LCD with backlight |
| Memory | for the last device settings and for 1 arbitrary signal |
| Safety class | Safety Class I (EN61010-1) |
| Power supply | 115 V to 230 V ± 10 %; 50 Hz to 60 Hz, CAT II |
| Power consumption | ca. 20 W |
| Operating temperature | +5 °C to +40 °C |
| Storage temperature | –20 °C to +70 °C |
| Rel. humidity | 5 % to 80 % (noncondensing) |
| Dimensions (B × H × T) | 285 mm × 75 mm × 365 mm (11.2 in × 3 in × 14.4 in) |
| Weight | approx. 5 kg (11 lb) |
Документы
Описание
| Опции | Описание |
| HO880 | IEEE-488 (GPIB) Schnittstelle, galvanisch getrennt |
| HZ20 | Adapter, BNC to 4mm banana |
| HZ24 | Attenuators 50Ω (3/6/10/20dB) |
| HZ42 | 19“ Rackmount kit 2RU |
| HZ72 | IEEE-488 (GPIB) Cable 2m |
